A manufacturing facility consists of eight departments (A, B, C, D, E, F, G, and H) and is to produce six components (1, 2, 3, 4
, 5, and 6). Following are the product routings and production forecasts: Component Routing Production Forecast (E.U.L. per week)
1 A-B-G-H 20
2 A-C-D-H 25
3 A-D-E-F-H 20
4 A-B-C-E-H 30
5 A-B-C-D-H 15
6 A-E-F-G-H 5

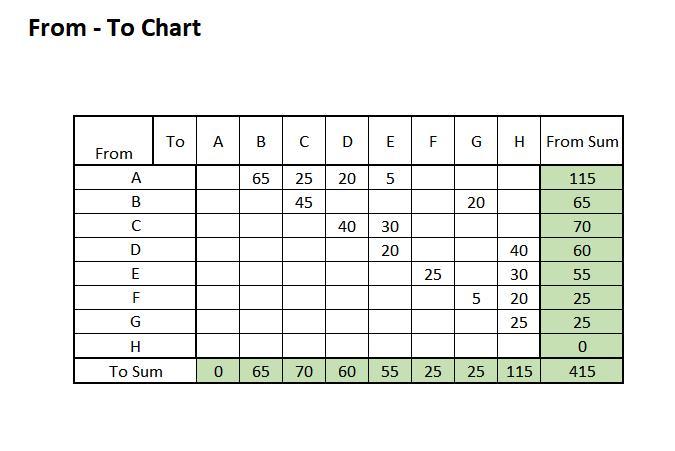

a) Develop the FROM-TO chart [20]
b) Develop the VOLUME-BETWEEN chart [20]
1 A-B-G-H 20
2 A-C-D-H 25
3 A-D-E-F-H 20
4 A-B-C-E-H 30
5 A-B-C-D-H 15
6 A-E-F-G-H 5
a) Develop the FROM-TO chart [20]
b) Develop the VOLUME-BETWEEN chart [20]
1 answer:
