Keith_Richards [3.2K]2 months ago

5 0

a) Ver explicación

b) $K_2>K_1$

Justificación:

La velocidad angular de un objeto en rotación se refiere a la variación en su desplazamiento angular:

$\omega=\frac{\Delta \theta}{\Delta t}$

donde

$\Delta \theta$ representa el desplazamiento angular

$\Delta t$ indica el tiempo transcurrido

El momento angular de un objeto en rotación se define como

$L=I\omega$

donde I es el momento de inercia del objeto.

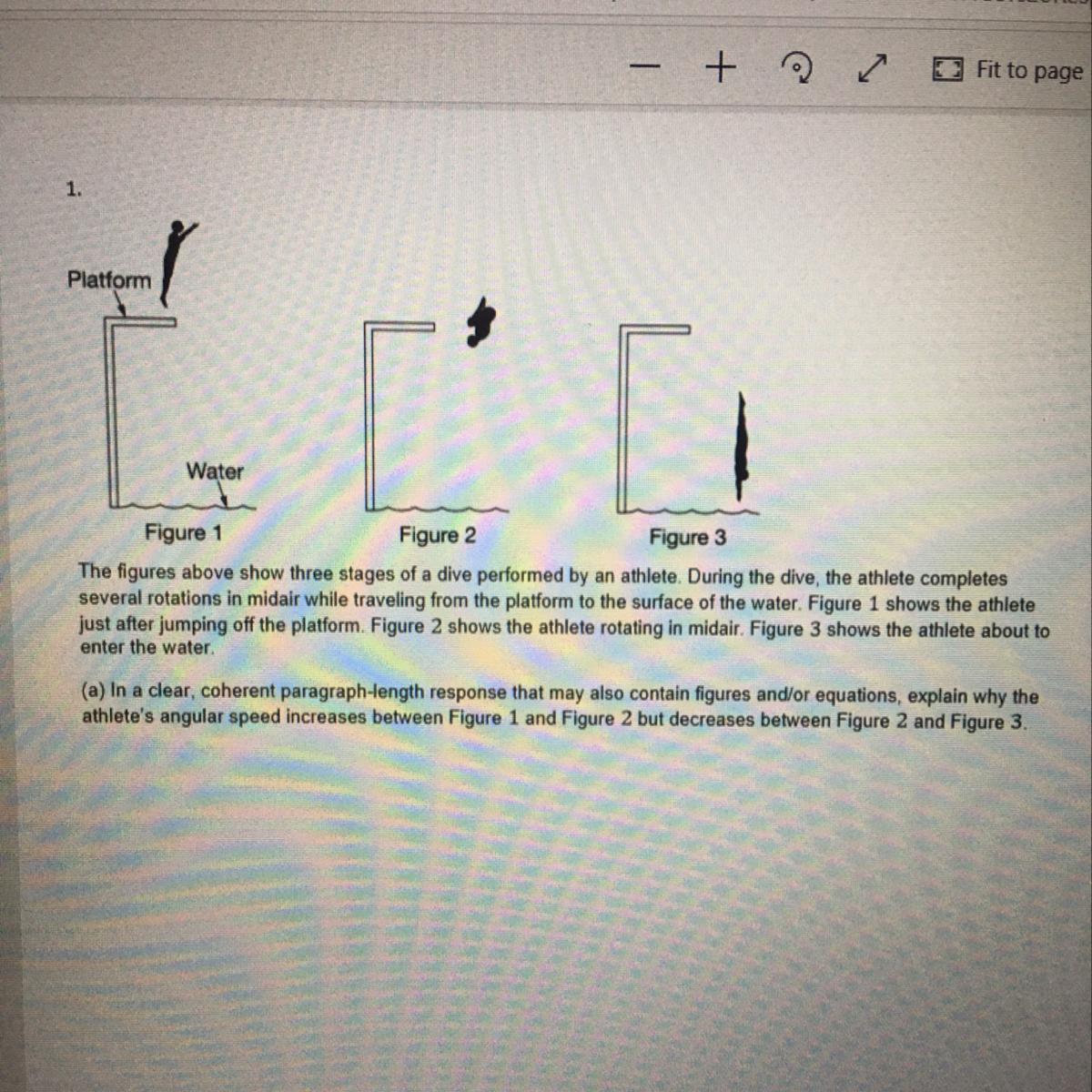

A medida que se avanza de la figura 1 a la figura 2, el momento de inercia del atleta disminuye al acercar sus extremidades hacia su cuerpo. Dado que el atleta representa un sistema aislado, el momento angular $L$ debe mantenerse constante, por lo tanto, a medida que $I$ desciende, $\omega$ (velocidad angular) tiene que ascender.

En contraste, al pasar de la figura 2 a la figura 3, el momento de inercia del atleta incrementa nuevamente y, por lo tanto, dado que $L$ debe mantenerse constante, la velocidad angular disminuirá.

La energía cinética rotacional de un objeto en movimiento rotacional se establece como

$K=\frac{1}{2}I\omega^2$

donde

I es el momento de inercia

$\omega$ representa la velocidad angular

Utilizando

$L=I\omega$

podemos reescribir la energía cinética rotacional como:

$K=\frac{1}{2}L\omega$

En la parte a), afirmamos que el momento angular L permanece invariable; sin embargo, la velocidad angular $\omega$ aumenta mientras pasamos de la figura 1 a la figura 2. Dado que la energía cinética rotacional es proporcional tanto al momento angular como a la velocidad angular, y considerando que el momento angular se mantiene constante, significa que la energía cinética rotacional también aumenta al transitar de la figura 1 a la figura 2.

Por lo tanto, la respuesta es

$K_2>K_1$

You might be interested in

Anna drew a diagram to compare the strong and weak force. Which labels belong in the areas marked X, Y, and Z? X: infinite range

inna [3103]

For areas labeled X, Y, and Z, X is only attractive, Y has a very limited range, and Z is both attractive and repulsive. In the earlier provided information, Anna created a diagram to compare forces that are either strong or weak. The aim is to identify the labels belonging to the areas designated as X, Y, and Z respectively. Therefore, for X, Y, Z, it is categorized as: X: strictly attractive or attractive only, Y: extremely limited range, Z: contains both repulsive and attractive characteristics.

8 0

16 days ago

An organ pipe open at both ends has a radius of 4.0 cm and a length of 6.0 m. what is the frequency (in hz) of the third harmoni

inna [3103]

When air is forced into the open pipe,

L = $\frac{nλ}{2}$

where n represents any whole number such as 1,2,3,4, etc., and λ denotes the wavelength of the oscillation

This implies λ= $\frac{2L} {n}$

It is important to note that n=1 corresponds to the fundamental frequency, n=2 corresponds to the first harmonic, and so forth.

Thus, the third harmonic will be for n=4

With L=6m and n=4, solving for λ yields:

λ= $\frac{(2)*(6)}{4}$ =3m

The connection between frequency (f), sound speed (c), and wavelength (λ) is given by:

c=f.λ or f= $\frac{c}{λ}$

Therefore, f= $\frac{344}{3}$

≈115 Hz

8 0

25 days ago

If an electronic circuit experiences a loss of 3 decibels with an input power of 6 watts, what would its output power be, to the

Yuliya22 [3333]

Answer:

The output power of the circuit is 3 Watts.

Given:

a loss in decibels = 3 dB

Input power = 6 Watts

To find:

What is the output power?

Formula used:

Output power = Input power × loss in ratio

Solution:

3 dB loss corresponds to a ratio of 0.5

Output power can be calculated as follows:

Output power = Input power × loss in ratio

Output power = 6 × 0.5

Output power = 3 Watts

Therefore, the output power of the circuit is 3 Watts.

4 0

28 days ago

Read 2 more answers

In an amusement park rocket ride, cars are suspended from 3.40-m cables attached to rotating arms at a distance of 5.90 m from t

ValentinkaMS [3465]

Answer:

The rotational angular speed is measured at 1.34 rad/s.

Explanation:

Considering the following parameters,

Length = 3.40 m

Distance = 5.90 m

Angle = 45.0°

We are tasked with finding the angular speed of rotation

Using the balance equation

Horizontal component

$T\cos\theta=mg$

$T=\dfrac{mg}{\cos\theta}$

Vertical component

$T\sin\theta=m\omega^2 r$

Substituting the tension value

$mg\tan\theta=m\omega^2(d+L\sin\theta)$

$\omega=\sqrt{\dfrac{g\tan\theta}{(d+L\sin\theta)}}$

Substituting the value into the equation

$\omega=\sqrt{\dfrac{9.8\tan45.0}{5.90+3.40\sin45.0}}$

$\omega=1.34\ rad/s$

Thus, the angular speed of rotation computes to 1.34 rad/s.

7 0

1 month ago

Each shot of the laser gun most favored by Rosa the Closer, the intrepid vigilante of the lawless 22nd century, is powered by th

Yuliya22 [3333]

U = 1794.005 × 10⁶ J. Explanation: Information provided indicates that the capacitance of the original capacitor is C = 1.27 F, and the potential difference applied to it is V = 59.9 kV, or 59.9 × 10³ V. The potential energy (U) for the capacitor is determined by the formula: U = (1/2) × C × V². Substituting the respective values, we find U = (1/2) × 1.27 × (59.9 × 10³)², resulting in U = 1794.005 × 10⁶ J.

7 0
