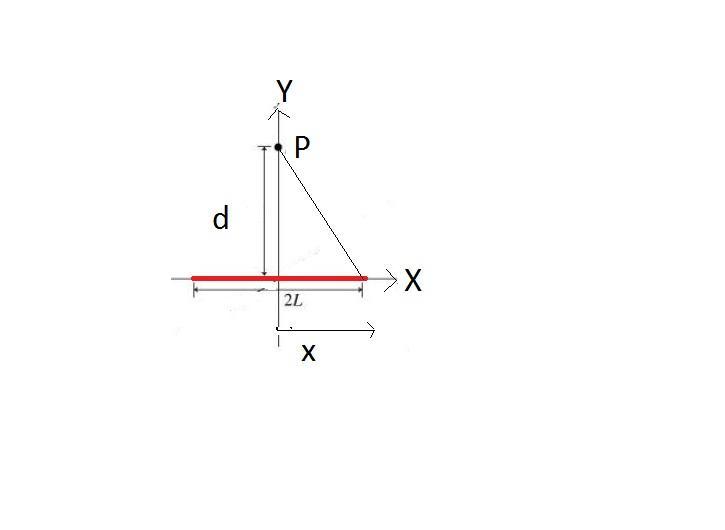

A charged wire of negligible thickness has length 2L units and has a linear charge density λ. Consider the electric field E-vect

or at the point P, a distance d above the midpoint of the wire. The field E-vector points along one of the primary axes, yWhat is the magnitude E of the electric field at point P? Throughout this part, express your answers in terms of the constant k, defined by k=1/(4πε)

Physics
1 answer:
Softa [3K]1 month ago
4 0

Answer:

E=2K\lambda d\dfrac{L }{d^2\sqrt{L^2+d^2}}

Explanation:

Consider the following:

Length= 2L

Linear charge density=λ

Distance= d

K=1/(4πε)

The electric field measured at point P

E=2K\int_{0}^{L}\dfrac{\lambda }{r^2}dx\ sin\theta

sin\theta =\dfrac{d}{\sqrt{d^2+x^2}}

r^2=d^2+x^2

Thus,

E=2K\lambda d\int_{0}^{L}\dfrac{dx }{(x^2+d^2)^{\frac{3}{2}}}

Now, by applying integration to the equation above

E=2K\lambda d\dfrac{L }{d^2\sqrt{L^2+d^2}}
