Answer:
Maximum emf = 5.32 V
Explanation:
Provided data includes:
Number of turns, N = 10
Radius of loop, r = 3 cm = 0.03 m
It made 60 revolutions each second
Magnetic field, B = 0.5 T
We are tasked to determine the maximum emf produced in the loop, which is founded on Faraday's law. The induced emf can be calculated by:

For the maximum emf,
Therefore,

Hence, the maximum emf generated in the loop is 5.32 V.
<span>A force of 110 N is applied at an angle of 30</span>°<span> to the horizontal. Because the force does not align directly either vertically or horizontally with the sled, it can be broken down into two components based on sine and cosine.
For the component parallel to the ground:
x = rcos</span>β
<span>x = 110cos30</span>°
<span>x = 95.26
For the component perpendicular to the ground:
y = rsin</span>β
<span>y = 110sin30</span>°
<span>y = 55</span>
<span>A centripetal force maintains an object's circular motion. When the ball is at the highest point, we can assume that the ball's speed v is such that the weight of the ball matches the required centripetal force to keep it moving in a circle. Hence, the string will not become slack.
centripetal force = weight of the ball
m v^2 / r = m g
v^2 / r = g
v^2 = g r
v = sqrt { g r }
v = sqrt { (9.80~m/s^2) (0.7 m) }
v = 2.62 m/s
Thus, the minimum speed for the ball at the top position is 2.62 m/s.</span>
Answer:
d_total = 12 m
Explanation:

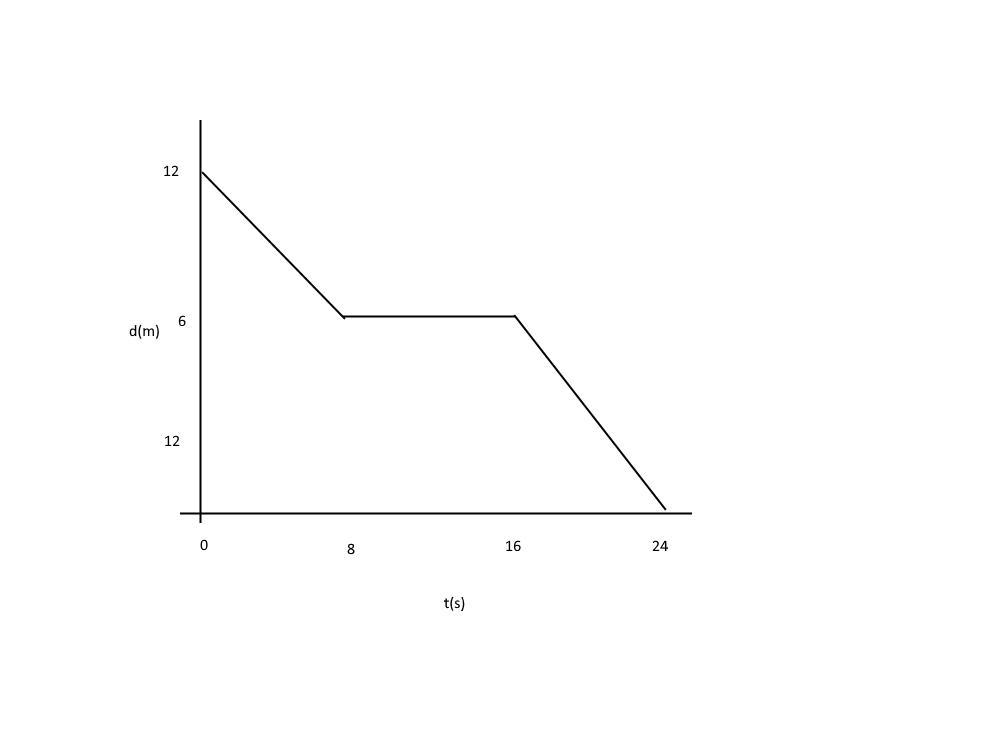

In this kinematics scenario illustrated in the graph provided, we determine the distance traveled over a 24-second duration.
The comprehensive distance can be calculated as follows:
d_total = d₁ + d₂ + d₃
Given that d₂ on the graph is level (v=0), its distance equates to zero, hence d₂ = 0.
The distance for d₁ is calculated as:
d₁ = 12 - 6 = 6 m
For distance d₃:
d₃ = 6 - 0 = 6 m
Thus, the overall distance covered is:
d_total = 6 + 0 + 6
d_total = 12 m
