Alexis is trying to partition segment ab in the ration 2:3 using a compass

Using a compass, the line shown in can be split according to the ratio depicted in .

Detailed explanation:

Alexis aims to divide the line segment into parts with the ratio , by employing a compass.

There exist various techniques to segment a line segment in the specified ratio, but we'll use a straightforward approach here to partition the line into the ratio .

Consider the line segment that needs division in the ratio .

Begin by drawing any ray forming an acute angle with .

Mark points on this ray so that the distances and are equal, utilizing a compass.

Since Alexis plans to split the line in the ratio , the ray will be divided into points accordingly.

Next, connect point with point .

From point , draw a line parallel to by replicating an angle identical to .

This parallel line to will intersect the original line at point .

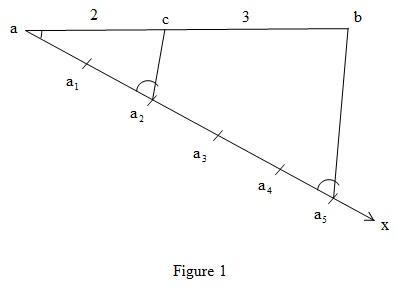

The intersection point represents the exact spot where the line is divided into the ratio , as illustrated in Figure 1 at the end.

The outlined procedure can be applied to split any line segment into a given ratio.

Therefore, the line has been successfully sectioned in the ratio .

For additional study:

1. Explore more about angles brainly.com/question/1953744

2. Understand collinear points brainly.com/question/5191807

Answer specifics:

Grade level: High school

Subject area: Mathematics

Topic: Constructions

Key terms: Alexis, compass, partition, segment, ab, ratio, 2:3, constructions, line, ray, parallel, intersection, angle, acute, geometry, line segment, acute angle.

Solution: The procedure is outlined below,

Steps:

To divide the line segment into a 2:3 ratio using a compass, Alexis should:

1) Sketch the line segment ab of length x.

2) Draw another line ac forming an acute angle with ab.

3) Since the ratio is 2:3, count 2+3=5 equal arcs along ac using the compass.

4) Label the fifth arc as point d, then connect d to point b.

5) Draw a line parallel to bd through the second arc along ad, marking it as m.

6) The intersection point n of this parallel line with ab divides ab in the 2:3 ratio.

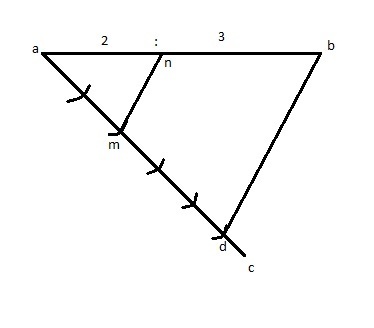

Using these steps creates a figure as shown below.
