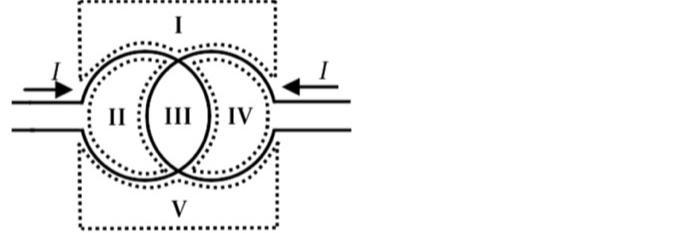

Consider two circular metal wire loops each carrying the same current I as shown below. In what r... Consider two circular metal

In an amusement park rocket ride, cars are suspended from 3.40-m cables attached to rotating arms at a distance of 5.90 m from t

ValentinkaMS [3465]

Answer:

The rotational angular speed is measured at 1.34 rad/s.

Explanation:

Considering the following parameters,

Length = 3.40 m

Distance = 5.90 m

Angle = 45.0°

We are tasked with finding the angular speed of rotation

Using the balance equation

Horizontal component

$T\cos\theta=mg$

$T=\dfrac{mg}{\cos\theta}$

Vertical component

$T\sin\theta=m\omega^2 r$

Substituting the tension value

$mg\tan\theta=m\omega^2(d+L\sin\theta)$

$\omega=\sqrt{\dfrac{g\tan\theta}{(d+L\sin\theta)}}$

Substituting the value into the equation

$\omega=\sqrt{\dfrac{9.8\tan45.0}{5.90+3.40\sin45.0}}$

$\omega=1.34\ rad/s$

Thus, the angular speed of rotation computes to 1.34 rad/s.

7 0

3 months ago

1. Susie wondered if the height of a hole punched in the side of a quart-size milk carton would affect how far from the containe

Sav [3153]

Hypothesis: The liquid will project far.
Independent Variable: Height of the hole.
Dependent Variable: Distance of the squirt.
Constant: All other factors aside from the independent variable, such as the liquid volume.
Control: None that I recognize.
Number of groups: 4
Trials per group: 4

7 0

2 months ago

Read 2 more answers

A resistor with resistance R and an air-gap capacitor of capacitance C are connected in series to a battery (whose strength is "

kicyunya [3294]

Answer:

a) Q = C*emf

b) Decrease in electric field strength and electric potential

c) Initial current through the resistor = emf/R

d) The final charge = K*C*emf

Explanation:

a) The resistors and capacitors are linked in series with the battery

According to Kirchoff's voltage law, the total voltage in the circuit must equal zero

Let $V_{R}$ represent the Voltage across the Resistor

$V_{c}$ and

represent the Voltage across the capacitor

Implementing KVL;

$emf - V_{R} - V_{c} = 0\\$

.........................(1)

Since this is a series connection, the same current traverses through the circuit

$V_{R} = IR\\Q = CV_{c} \\V_{c} = Q/C$

Integrating $V_{c}$ and $V_{R}$ into equation (1)

$emf - IR - Q/C = 0$

Initially, as the capacitor reaches full charge, the current will drop to zero because of equilibrium

$I = 0A\\emf = Q/C\\Q = C* emf$

b) When the plastic sheet is inserted between the plates, current begins to flow because both the electric field intensity and electric potential decrease. As a result, charge diminishes, leading to current flow

c) The current through the resistor equates to the total current within the circuit (given the series connection)

$I = I_{o} \exp(\frac{-t}{RC} )\\At time the initial time, t\\t = 0\\ I_{o} = \frac{emf}{R} \\$
