777dan777
1 day ago
14

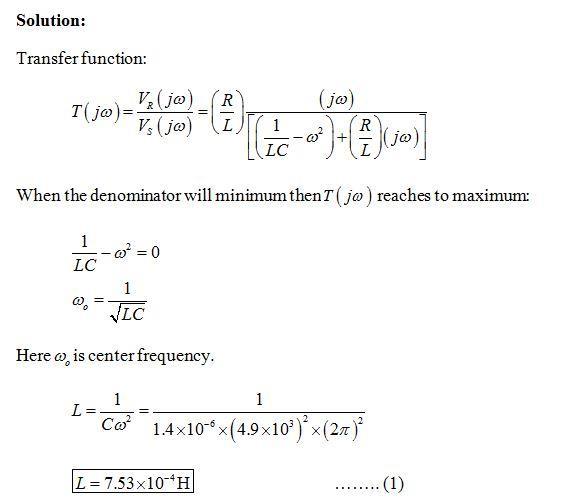

To analyze and design a passive, second-order bandpass filter using a series RLC circuit. A bandpass filter is needed for an equ

alizer, a device that allows one to select the level of amplification of sounds within a specific frequency band while not affecting the sounds outside that band. The filter should block frequencies lower than 1.8 kHz and have a resonant frequency of 5.4 kHz. A 3.2 μF capacitor and any needed resistors and inductors are available to be used in the filter. Design and analyze the RLC circuit that will make this bandpass filter.

Engineering
You might be interested in
A spherical hot-air balloon is initially filled with air at 120 kPa and 20°C with an initial diameter of 5 m. Air enters this ba
mote1985 [299]

Answer:

The duration is 17.43 minutes.

Explanation:

Based on the provided information, the initial diameter is 5 m

the velocity is 3 m/s

and the final diameter is 17 m.

To find the solution, we will use the volume change equation expressed as

ΔV = \frac{4}{3} \pi * (rf)^3 - \frac{4}{3} \pi * (ri)^3.............1

where ΔV represents the change in volume, rf is the final radius, and ri is the initial radius.

Calculating ΔV yields

ΔV = \frac{4}{3} \pi * (8.5)^3 - \frac{4}{3} \pi * (2.5)^3

ΔV = 2507 m³.

Thus,

Q = velocity × Area

Q = 3 × π ×(0.5)² = 2.356 m³/s.

Next, the change in time can be expressed as

Δt = \frac{\Delta V}{Q}

Δt = \frac{2507}{2.356}

Δt = 1046 seconds.

Therefore, the total change in time amounts to 17.43 minutes.

8 0
3 months ago
A hydraulic cylinder is to be used to move a workpiece in a manufacturing operation through a distance of 50 mm in 10 s. A force
Viktor [391]

Response:

The solution to this question is 1273885.3 ∅

Clarification:

The first step is to ascertain the required hydraulic flow rate liquid based on the working pressure if a cylinder with a piston diameter of 100 mm is utilized.

Given that,

The distance = 50mm

The time t =10 seconds

The force F = 10kN

The piston diameter = 100mm

The pressure = F/A

10 * 10^3/Δ/Δ

P = 1273885.3503 pa

Subsequently

Power = work/time = Force * distance /time

= 10 * 1000 * 0.050/10

which amounts to =50 watt

Power =∅ΔP

50 = 1273885.3 ∅

5 0
2 months ago
1) Relative to electrons and electron states, what does each of the four quantum numbers specify?
Mrrafil [318]
Cite two significant refinements that emerged from the Wave-mechanical

atomic model.

4 0
2 months ago
2.31 LAB: Simple statistics Part 1 Given 4 integers, output their product and their average, using integer arithmetic. Ex: If th
iogann1982 [368]

Answer:

Explanation:

Un dato importante: la división entera elimina la parte fraccionaria. Por lo tanto, el promedio de 8, 10, 5 y 4 se presenta como 6, no 6.75.

Observación: Las pruebas incluyen cuatro valores de entrada muy grandes cuyo producto causa desbordamiento. No necesitas hacer nada especial, solo ten en cuenta que la salida no representa el producto correcto (en realidad, el resultado de cuatro números positivos es negativo; sorprendente).

Envía lo anterior para evaluación. Tu programa no pasará las últimas pruebas (eso es normal) hasta que completes la segunda parte a continuación.

Parte 2: Además, se debe calcular e imprimir el producto y promedio usando aritmética de punto flotante.

Presenta cada número de punto flotante con tres dígitos después del punto decimal, lo cual puedes hacer así: System.out.printf("%.3f", tuValor);

Ejemplo: Si la entrada es 8, 10, 5, 4, la salida sería:

import java.util.Scanner;

public class LabProgram {

public static void main(String[] args) {

Scanner scnr = new Scanner(System.in);

int num1;

int num2;

int num3;

int num4;

num1 = scnr.nextInt();

num2 = scnr.nextInt();

num3 = scnr.nextInt();

num4 = scnr.nextInt();

double average_arith = (num1 + num2 + num3 + num4) / 4.0;

double product_arith = num1 * num2 * num3 * num4;

int result1 = (int) average_arith;

int result2 = (int) product_arith;

System.out.printf("%d %d\n", result2, result1);

System.out.printf("%.3f %.3f\n", product_arith, average_arith);

}

}

Expected output: 1600.000 6.750

5 0
3 months ago
Read 2 more answers
