Elena-2011
16 days ago
6

Draw the three structures of the aldehydes with molecular formula C5H10O that contain a branched chain.

Chemistry
1 answer:
lorasvet [2.5K]16 days ago
7 0

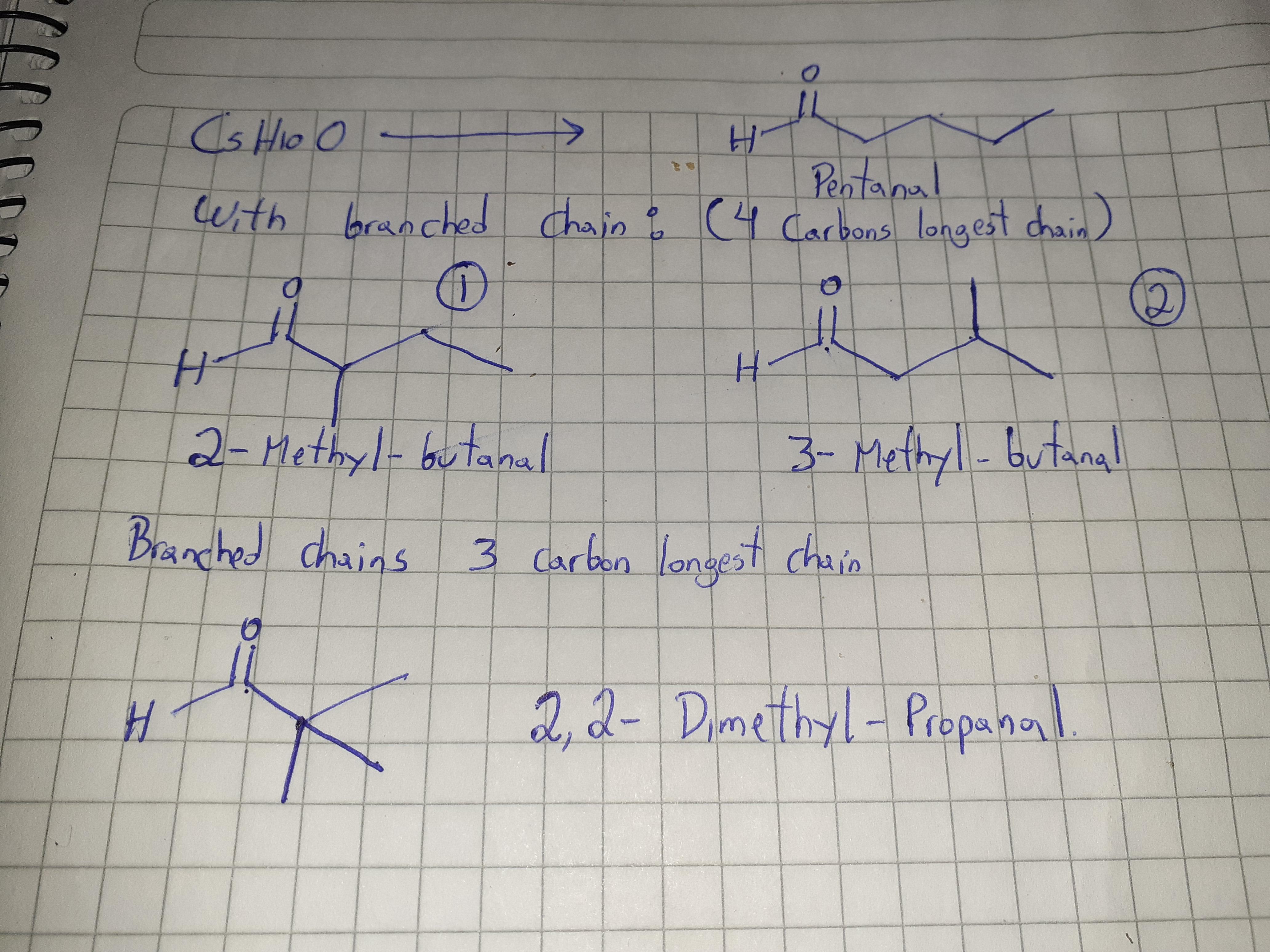

Refer to the image for the answer. An aldehyde is a carbon chain that features a carbonyl group at its end, which is why it is termed aldehyde; if the carbonyl group is elsewhere on the chain, it’s referred to as a ketone. In this case, we have a 5-carbon aldehyde and the first carbon comprises the C=O group, the remaining four making up the chain. However, we must introduce a branched chain into the molecular formula. This means the longest chain cannot maintain a length of 5 carbons; instead, the maximum would be 4 carbons, making the additional carbon the branched unit. We can have two possibilities for the branched chain aldehyde with 5 carbons: one methyl group positioned at 2 and another at 3. Another potential aldehyde with branching cannot exceed 4 carbons as the longest; it must have a 3-carbon chain with 2 carbon radicals (methyl in this context). Thus, the three aldehydes with the specified formula and at least one branch can be represented, alongside their respective names in the attached image.
You might be interested in
1. Bailey wants to find out which frozen solid melts the fastest: soda, gatorade, or orange juice. She pours each of the three l
VMariaS [2693]

First scenario:

IV: soda, gatorade, orange juice, and water

DV: state of the liquids listed above

Control: freezer and ice tray

Second scenario:

IV: laundry detergent, water

DV: cleanliness of the squares post-wash

Control: chocolate, cloth type, cloth squares

Third scenario:

IV: type of water used, pea plant

DV: growth of the pea plant

Control: pots and daily water amount for the plant

4 0
1 month ago
Read 2 more answers
Los automóviles actuales tienen “parachoques de 5 mi/h (8 km/h)” diseñados para comprimirse y rebotar elásticamente sin ningún d
KiRa [2726]

Response: k = 23045 N/m

Clarification:

To determine the spring constant, one must consider the maximum elastic potential energy that the spring can withstand. The kinetic energy of the vehicle should equal at minimum the elastic potential energy of the spring when it is fully compressed. Hence, we express it as:

K=U\\\\\frac{1}{2}Mv^2=\frac{1}{2}kx^2    (1)

M: mass of the vehicle = 1050 kg

k: spring constant =?

v: car speed = 8 km/h

x: maximum spring compression = 1.5 cm = 0.015m

You need to resolve equation (1) for k. Beforehand, convert the speed v to meters per second:

v=8\frac{km}{h}*\frac{1000m}{1km}*\frac{1h}{3600s}=2.222\frac{m}{s}

k=\frac{Mv^2}{x^2}=\frac{(1050kg)(2.222m/s)^2}{(0.015m)^2}=23045\frac{N}{m}

The spring constant calculates to 23045 N/m

3 0
13 days ago
A covalent chemical bond is one in which _____. a covalent chemical bond is one in which _____. outer-shell electrons of two ato
Tems11 [2403]

Response:

            A covalent bond is formed when the outer electrons of two atoms are shared, enabling them to adequately fill their orbitals.

Clarification:

                   Covalent bonds occur between atoms with an electronegativity difference below 1.7. In this bonding type, one atom's valence electrons create a molecular bond with the other atom's valence electrons, leading to mutual sharing of electrons.

                   Covalent bonds can be non-polar, as seen in hydrogen and carbon bonding.

                   Conversely, covalent bonds can also be polar, such as the bond between hydrogen and chlorine, where the chlorine atom is more electronegative and draws electrons towards itself, resulting in a lower electron density on the hydrogen atom.

5 0
22 days ago
Read 2 more answers
What is the length of inches of a 100 meter soccer field and i need answer in scientific notation
VMariaS [2693]

The soccer field's length is 3.94 × 10^2 in.

Length = 100 m × (39.37 in/1 m) = 394 in = 3.94 × 10^2 in

4 0
19 days ago
Read 2 more answers
According to the storage ladder protocol, raw meat should be stored on shelves based on its? A.Minimum internal cooking temperat
Anarel [2605]

Response:

D. Maximum internal cooking temperature

Clarification:

Per the Storage Ladder Protocol, proper rules must be followed when storing food in the refrigerator. Prepared dishes belong on the highest shelf; fruits and vegetables are positioned on the next; fish and seafood go on the third; beef and pork are kept on the fourth; ground meat is stored on the fifth; and poultry items sit on the bottom shelf. This illustrates that ground beef should be placed above chicken. A diagram is included below for optimal storage order explanation.

7 0
12 days ago
Read 2 more answers
