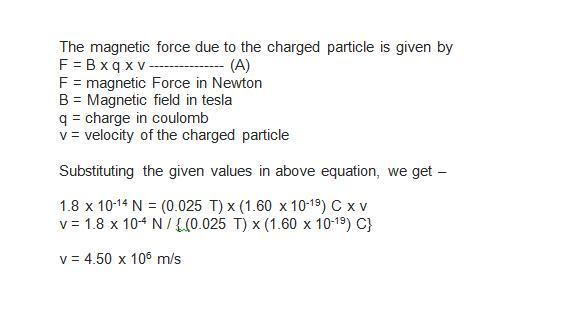

A proton travels at right angles through a magnetic field of 0.025 teslas. If the magnitude of the magnetic force on the proton

20.7 volts. The mass of an electron is 9.1 x 10⁻³¹ kg, and its wavelength is 0.27 x 10⁻⁹ m. The velocity of the electron can be determined using de Broglie's equation λ mv = h. Substituting the known values, we arrive at v = 2.7 x 10⁶ m/s. The potential difference through which the electron accelerates is noted, with the charge on an electron being 1.6 x 10⁻¹⁹ C. According to the conservation of energy, (0.5) mv² = q ΔV leads to ΔV = 20.7 volts.

Velocity = 71 meters per minute (MPM)
S stands for Speed
D means Distance
T represents Time
To calculate Speed, divide Distance by Time.

Part 1) Which metal will cool the fastest?
To determine this, we need to consider the heat flow rate formula, which indicates the speed at which a substance can gain or lose heat:

where:
denotes the heat exchanged
indicates the duration
k represents the thermal conductivity of the material
A is the area over which heat transfer takes place
shows the change in temperature
x is the thickness of the substance
It is evident that the heat flow rate is directly related to k, the thermal conductivity. Thus, a higher value of k means that the metal will cool more quickly.
Upon examining the thermal conductivity values for each metal, we observe:
- Aluminium: 237 W/(mK)
- Copper: 401 W/(mK)
- Gold: 314 W/(mK)
- Platinum: 69 W/(mK)
Consequently, copper has the highest heat flow rate, making it the metal that cools the fastest.

Part 2) Which sample of copper demonstrates the greatest increase in temperature
To address this part, we can examine how the heat exchanged Q correlates with temperature increase :

where m indicates the mass and Cs represents the specific heat capacity of the material. By rearranging the equation, we derive

As a result, it becomes clear that the temperature increase is inversely related to the mass m. Thus, the block exhibiting the highest temperature rise will be the one with the least mass, hence the right choice is A) 0.5 kg.

b ) The first lens is a concave lens with a focal length of f₁ = - 12 cm and an object distance of u = - 20 cm. Using the lens formula, 1 / v - 1 / u = 1 / f, we get 1 / v + 1 / 20 = -1 / 12. This leads to 1 / v = - 1 / 20 - 1 / 12, which simplifies to 1 / v = -0.05 - 0.08333, yielding v = -7.5 cm. Consequently, the first image is formed before the first lens, near the object side, which becomes the object for the second lens with a distance of 16.5 cm from the second lens. c ) For the second lens, object distance is u = -16.5 cm, and focal length f₂ = + 12 cm (convex lens). Using the lens formula leads to 1 / v + 1 / 16.5 = 1 / 12, and this results in 1 / v = 1 / 12 - 1 / 16.5, which simplifies to 1 / v = 0.08333 - 0.0606. Finally, we find v = 44 cm (approximately). This image will be formed on the other side of the convex lens, which is 53 cm from the first lens. Magnification by the first lens is v / u = -7.5 / -20 = 0.375. For the second lens, it is v / u = 44 / - 16.5 = -2.67. d ) The total magnification becomes 0.375 x - 2.67 = - 1.00125. The height of the final image is then calculated as 2.50 mm x 1.00125 = 2.503 mm. e ) The final image will be inverted compared to the object since the total magnification is negative.

Answer:

Part a)

A = 0.0581 m

Part b)

T = 0.37 s

Explanation:

A slice is dropped onto the plate from a height of 0.250 m,

therefore the speed of the slice upon impact is calculated as

We know that

Now applying the conservation of momentum:

From this equation, we find:

When the slice rests on the plate, the new mean position can be expressed as

We also determine that the speed of SHM is represented as

Here, we derive values from

Using the previous formula gives:

Part b)

The time period for the scale is computed as
