Consider the following program:

Engineering

1 answer:

Daniel [329]8 days ago

5 0

Answer:

The resolution for this question is below in the explanation section.

Explanation:

The right response to this question is A, which is 112002.

The correct code relating to this question is presented below

#include <stdio.h>

#include <string.h>

#include <sys/types.h>

//#include "csapp.h"

void end(void)

{

printf("2");

}

int main()

{

if (fork() == 0)

atexit(end);

if (fork() == 0)

printf("0");

else

printf("1");

exit(0);

}

/* $end forkprob2 */

When this program is executed, the fork function will yield varying results.

However, it should be noted that running it multiple times will produce inconsistent values. The most common output the program will generate is A.

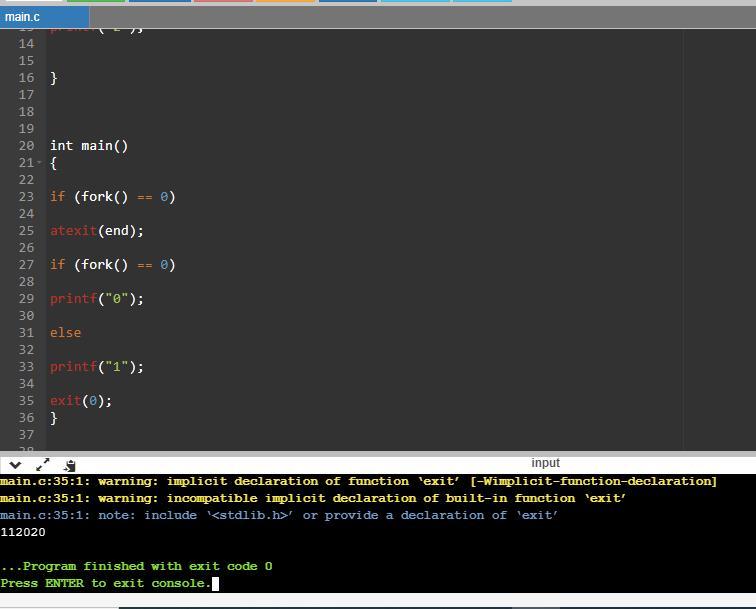

Attached is an image of the program's execution for further clarification.

You might be interested in

An open vat in a food processing plant contains 500 L of water at 20°C and atmospheric pressure. If the water is heated to 80°C,

Mrrafil [318]

Answer:

Volume change percentage is 2.60%

Water level increase is 4.138 mm

Explanation:

Provided data

Water volume V = 500 L

Initial temperature T1 = 20°C

Final temperature T2 = 80°C

Diameter of the vat = 2 m

Objective

We aim to determine percentage change in volume and the rise in water level.

Solution

We will apply the bulk modulus equation, which relates the change in pressure to the change in volume.

It can similarly relate to density changes.

Thus,

E = $-\frac{dp}{dV/V}$ ................1

And $-\frac{dV}{V} = \frac{d\rho}{\rho}$ ............2

Here, ρ denotes density. The density at 20°C = 998 kg/m³.

The density at 80°C = 972 kg/m³.

Plugging in these values into equation 2 gives

$-\frac{dV}{V} = \frac{d\rho}{\rho}$

$-\frac{dV}{500*10^{-3} } = \frac{972-998}{998}$

dV = 0.0130 m³

Therefore, the percentage change in volume will be

dV % = $-\frac{dV}{V}$ × 100

dV % = $-\frac{0.0130}{500*10^{-3} }$ × 100

dV % = 2.60 %

Hence, the percentage change in volume is 2.60%

Initial volume v1 = $\frac{\pi }{4} *d^2*l(i)$ ................3

Final volume v2 = $\frac{\pi }{4} *d^2*l(f)$ ................4

From equations 3 and 4, subtract v1 from v2.

v2 - v1 = $\frac{\pi }{4} *d^2*(l(f)-l(i))$

dV = $\frac{\pi }{4} *d^2*dl$

Substituting all values yields

0.0130 = $\frac{\pi }{4} *2^2*dl$

Thus, dl = 0.004138 m.

Consequently, the water level rises by 4.138 mm.

8 0

1 month ago

Write cout statements with stream manipulators that perform the following:

grin007 [323]

Answer:

A)cout<<setw(9)<<fixed<<setprecision(2)<<34.789;

B)cout<<setw(5)<<fixed<<setprecision(3)<<7.0;

C)cout<<fixed<<5.789E12;

D)cout<<left<<setw(7)<<67;

Explanation:

Stream Manipulators are special functions for use with the insertion (<<) and extraction (>>) operators on C++ stream objects, while the 'cout' statement outputs content to the standard output device in C++ programming.

setw: specifies the minimum width of the output field

setprecision: defines the number of decimal places for floating-point value formatting.

fixed: sets the format flag for floating-point streams.

left: left-aligns the output.

A) This statement shows the number 34.789 in a field that provides eight character spaces with two decimal precision. cout<<setw(9)<<fixed<<setprecision(2)<<34.789;

B) Here, the number 7.0 is displayed within six spaces with three decimal precision. cout<<setw(5)<<fixed<<setprecision(3)<<7.0;

C) This command prints 5.789e+12 in fixed-point format. cout<<fixed<<5.789E12;

D) This statement left-aligns the number 67 across a field of six spaces. cout<<left<<setw(7)<<67;

7 0

1 month ago

A liquid food with 12% total solids is being heated by steam injection using steam at a pressure of 232.1 kPa (Fig. E3.3). The p

iogann1982 [368]

Answer:

$m_{s}=20kg/min$

$H_{s}=1914kJ/kg$

Explanation:

A liquid food containing 12% total solids is heated via steam injection at a pressure of 232.1 kPa (see Fig. E3.3). The product starts at a temperature of 50°C and has a flow rate of 100 kg/min, being elevated to a temperature of 120°C. The specific heat of the product varies with its composition as follows:

$c_{p}=c_{pw}(mass fraction H_{2}0)+c_{ps}(mass fraction solid)$ and the

specific heat of the product at 12% total solids is 3.936 kJ/(kg°C). The goal is to calculate the quantity and minimum quality of steam required to ensure that the leaving product has 10% total solids.

Given

Product total solids in ( $X_{A}$ ) = 0.12

Product mass flow rate ( $m_{A}$ ) = 100 kg/min

Product total solids out ( $X_{B}$ ) = 0.1

Product temperature in ( $T_{A}$ ) = 50°C

Product temperature out ( $T_{B}$ ) = 120°C

Steam pressure = 232.1 kPa at ( $T_{S}$ ) = 125°C

Product specific heat in ( $C_{PA}$ ) = 3.936 kJ/(kg°C)

The mass equation is:

$m_{A}X_{A}=m_{B}X_{B}$

$100(0.12)=m_{B}(0.1)\\m_{B}=\frac{100(0.12)}{0.1} =120$

Also $m_{a}+m_{s}=m_{b}\\$

Therefore: $100}+m_{s}=120\\\\m_{s}=120-100=20$

The energy balance equation is:

$m_{A}C_{PA}(T_{A}-0)+m_{s}H_{s}=m_{B}C_{PB}(T_{B}-0)$

$3.936 = (4.178)(0.88) +C_{PS}(0.12)\\C_{PS}=\frac{3.936-3.677}{0.12} =2.161$

$C_{PB}= 4.232*0.9+0.1C_{PS}= 4.232*0.9+0.1*2.161=4.025$ kJ/(kg°C)

By substituting values into the energy equation:

$100(3.936)(50-0)+20H_{s}=120(4.025)}(120-0)$

$19680+20H_{s}=57960\\20H_{s}=57960-19680 \\20H_{s}=38280\\H_{s}=\frac{38280}{20} =1914$

$H_{s}=1914kJ/kg$

From the properties of saturated steam at 232.1 kPa,

$H_{c}$ = 524.99 kJ/kg

$H_{v}$ = 2713.5 kJ/kg

% quality = $\frac{1914-524.99}{2713.5-524.99} =63.5%$

Any steam quality above 63.5% will result in higher total solids in the heated product.

3 0

1 month ago

Which of the following types of protective equipment protects workers who are passing by from stray sparks or metal while anothe

choli [298]

Answer:

Flame-resistant clothing and aprons

Explanation:

Workers involved with welding are generally mandated to wear flame-resistant clothing and aprons to shield them from various hazards, including heat, flames, burns, and potential radiation. In the context of welding, this gear protects individuals from flying sparks that can ignite and cause fires. Hence, such clothing helps to prevent accidents in these situations.

7 0

1 month ago

Six years ago, an 80-kW diesel electric set cost $160,000. The cost index for this class of equipment six years ago was 187 and

grin007 [323]

Answer:

total expense for the new boiler = $229706.825

total expense for new boiler = $127512

Explanation:

provided information

initial power p1 = 80 kW

price C = $160000

cost index CI 1 = 187

cost index CI 2= 194

capacity factor f = 0.6

subsequent power p2 = 120 kW

present cost = $18000

to determine

total expense and cost for 40 kW

solution

we evaluate CN cost for the new boiler and CO cost for the existing boiler

where x represents the capacity of the new boiler

first we compute the current cost of the old boiler which is

current cost CO = C × $\frac{CI 1 }{CI 2 }$ .............1

substituting the value here

current cost = 160000 × $\frac{194 }{187 }$

updated current cost = $165989.304

and

employing power sizing strategy for 124 kW

CN/CO = $(\frac{p2}{p1} )^{f}$ ...............2

insert value and calculate CN

CN/CO = $(\frac{p2}{p1} )^{f}$

CN / 165989.304 = $(\frac{120}{80} )^{0.6}$

CN = 211706.825

therefore the new expense = $211706.825

hence

total expense for the new boiler amounts to

total expense = new expense + current cost

total exp = 211706.825 + 18000

boiler expense total = $229706.825

and

concerning a 40 kW unit, the calculated new cost will be

applying equation 2

CN/CO = $(\frac{p2}{p1} )^{f}$

CN / 165989.304 = $(\frac{40}{80} )^{0.6}$

CN = 109512

thus the new cost is $109512

therefore

total expense for the new boiler is

total exp = new cost + current cost

total expense = 109512 + 18000

total cost for the new boiler = $127512

7 0
