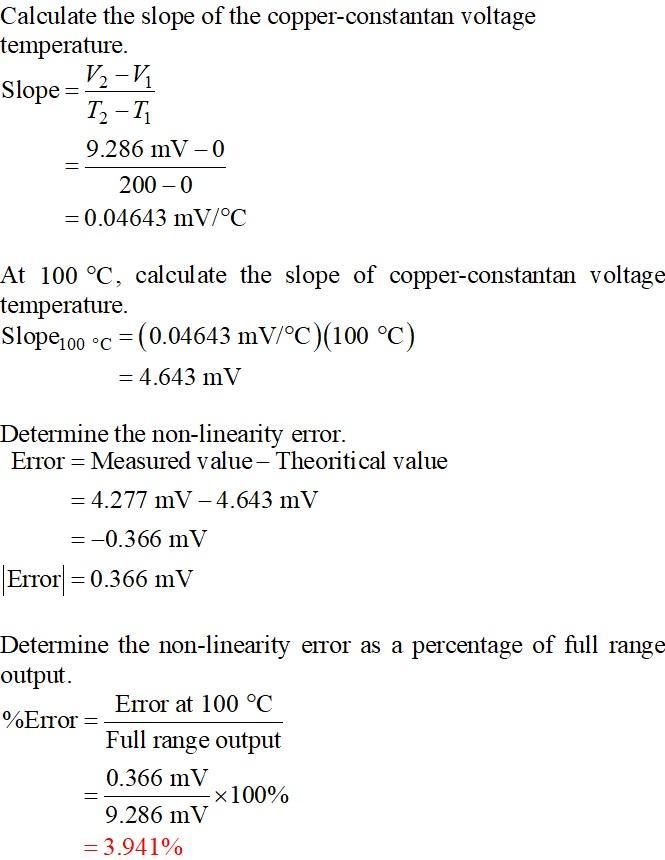

A copper-constantan thermocouple is to be used to measure temperatures between 0 and 200°C. The e.m.f. at 0°C is 0 mV, at 100°C

Answer:

Explanation:

The equilibrium vacancy concentration can be described by:

nv/N = exp(-ΔHv/KT),

where T is the temperature at which vacancies form,

K = Boltzmann's constant,

and ΔHv = enthalpy of vacancy formation.

Rearranging this equation to express temperature allows you to calculate it using the provided values. A detailed breakdown of the process is included in the attached file.

Answer:

The velocity at exit U_2 is 578.359 m/s

The exit diameter d_e is 1.4924 cm

Explanation:

Provided data includes:

Length of the nozzle L = 25 cm

Inlet diameter d_i = 5 cm

At the nozzle entrance (state 1): Temperature T_1 = 325 °C, Pressure P_1 = 700 kPa, Velocity U_1 = 30 m/s, Enthalpy H_1 = 3112.5 kJ/kg, Volume V_1 = 388.61 cm³/gAt the nozzle exit (state 2): Temperature T_2 = 250 °C, Pressure P_2 = 350 kPa, Velocity U_2, Enthalpy H_2 = 2945.7 kJ/kg, Volume V_2 = 667.75 cm³/g To determine:a. Exit Velocity U_2b. Exit Diameter d_e

a.The Energy Equation can be represented by:ΔH + ΔU² / 2 + gΔz = Q + WAssuming Q = W = Δz = 0Substituting the values yields:

(H_2 - H_1) + (U²_2 - U²_1)  / 2 = 0From which we can derive U_2 = sqrt((2* (H_1 - H_2 )) + U²_1) with the calculations leading to U_2 = sqrt ( 2 * 10^3 * (3112.5 -2945.7) + 900) yielding U_2 = 578.359 m/s

b.

Using mass balance approach, we have U_1 * A_1 / V_1 = U_2 * A_2 / V_2

Here, A = π*d² / 4

This leads to U_1 * d_i² / V_1 = U_2 * d_e² / V_2, thus d_e = d_i * sqrt((U_1 / U_2) * (V_2 / V_1)). Hence, d_e = 5 * sqrt((30 / 578.359) * (667.75 / 388.61)) computes to d_e = 1.4924 cm

Answer:

a. 25! = (Approximately)

b. 24!

Explanation:

a. In a Playfair cipher, there are 25 keys available because it is structured in a 5 * 4 grid. By using permutations to enumerate all potential configurations, we derive: 25! = 1.551121004×10²⁵ =

Although there are 26 letters available, in the Playfair cipher, the letters 'i' and 'j' are treated as a single letter.

b. Considering any configuration of 5x5, each of the four row shifts yields equivalent configurations, amounting to five total equivalencies. Similarly, for each of these five setups, any of the four column shifts also results in equivalent arrangements. Therefore, each configuration corresponds to 25 equivalent arrangements. Consequently, the total count of distinct keys can be expressed as:

25!/25 = 24! = 6.204484017×10²³

A.) 591.7 v B.) 991.7 v C.) 59.7 % D.) 47.9 kW E.) 247925 W F.) 59.7 %

The increase in temperature of the helium gas is calculated to be 14.25 K. The helium is located in an insulated box that falls from a height of 4.5 km. As it descends, the potential energy is transformed into internal energy of the helium gas. The equation for temperature change can be expressed as: 10 x 4.5 = 3.15 x ΔT, yielding a temperature increase of ΔT = 14.25 K.
