madreJ
8 days ago
9

The water level in a large tank is maintained at height H above the surrounding level terrain. A rounded nozzle placed in the si

de of the tank discharges a horizontal jet of water. The nozzle is located a distance h below the free surface. Neglecting friction and surface tension, determine the range xmax where the stream strikes the ground.

Engineering
1 answer:
pantera1 [306]8 days ago
8 0

Answer:

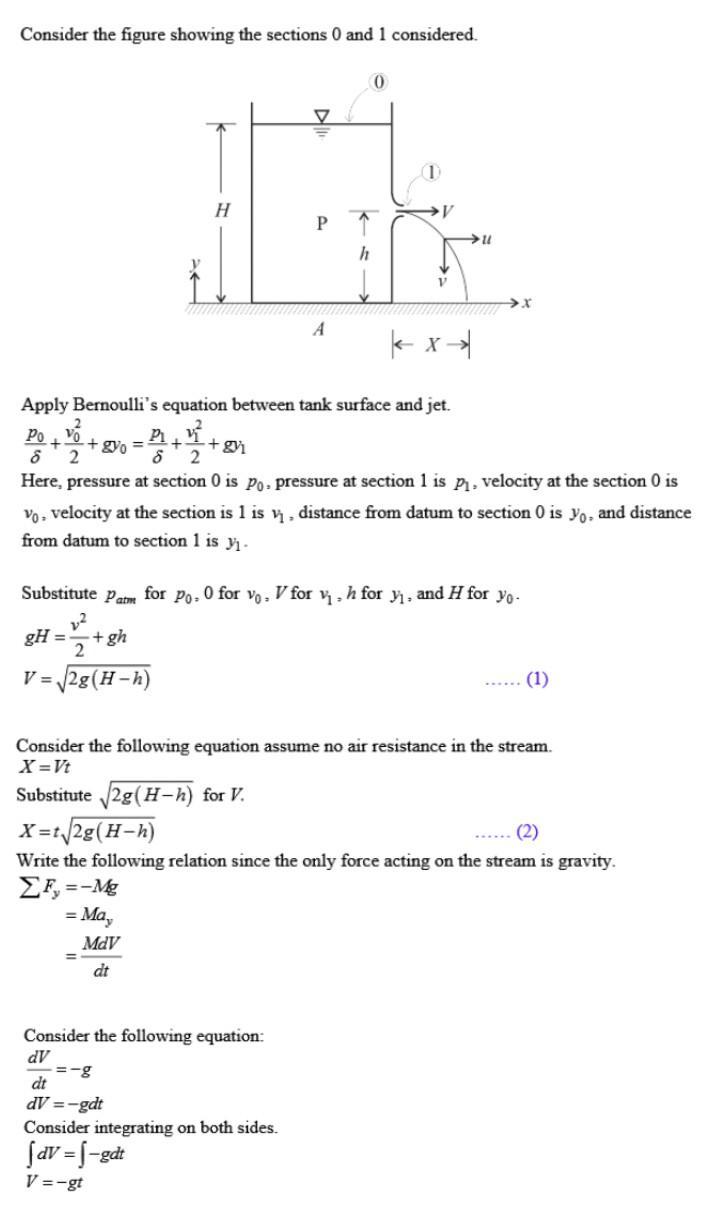

Explanation: Kindly refer to the attached files for a detailed solution process.

Take note that the diagram file is the first one and is positioned accordingly.
