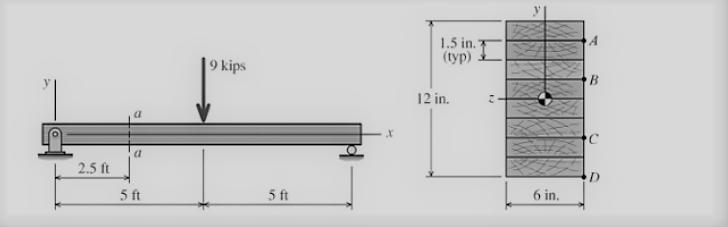

A 10-ft-long simply supported laminated wood beam consists of eight 1.5-in. by 6-in. planks glued together to form a section 6 i
n. wide by 12 in. deep. The beam carries a 9-kip concentrated load at midspan. Which point has the largest Q value at section a–a?
1 answer:
Point B is where
shows the highest Q value at section a–a. The missing diagram that was supposed to accompany this question can be found in the attached file. Based on the given information, we must identify the point with the greatest Q value at section a–a. To achieve this, we're working with the attached image. The image reveals that there are 8 blocks stacked vertically on the right-hand side, totaling 12 inches; thus, each block measures 1.5 inches in height. Additionally, the blocks are divided into sections marked as A, B, C, and D. For point A, we use the formula Q representing the moment of Area A. For point B, we set Q as the moment of Area B, and similarly for points C and D. However, point D has no area, resulting in a moment of 0.
