Answer:

90 L.atm

Explanation:

According to the provided details:

First pathway:

A( 3 atm, 20 L) → C ( 1 atm, 20 L) → D (1 atm, 50 L)

Second pathway:

A(3 atm, 20 L) → B( 3 atm, 50 L) → D ( 1 atm, 50 L)

As the number of moles is 1.00 moles

To calculate wAB;

A → B signifies the transformation is happening at a steady pressure;

Thus,

wAB = pressure multiplied by the change in volume

wAB = P(V₂ - V₁)

wAB = 3 atm (50 L - 20 L)

wAB = 3 atm (30 L)

wAB = 90 L.atm

Response:

Refer to the explanation

Clarification:

Code:

import java.util.Scanner;

public class NumberPattern {

public static int x, count;

public static void displayNumPattern(int num1, int num2) {

if (num1 > 0 && x == 0) {

System.out.print(num1 + " ");

count++;

displayNumPattern(num1 - num2, num2);

} else {

x = 1;

if (count >= 0) {

System.out.print(num1 + " ");

count--;

if (count < 0) {

System.exit(0);

}

displayNumPattern(num1 + num2, num2);

}

}

}

public static void main(String[] args) {

Scanner scnr = new Scanner(System.in);

int num1;

int num2;

num1 = scnr.nextInt();

num2 = scnr.nextInt();

displayNumPattern(num1, num2);

}

}

See attached example output

Answer:

r=0.31

Ф=18.03°

Explanation:

Provided:

Original diameter of bar = 75 mm

Diameter post-cutting = 73 mm

Average diameter of the bar d= (75+73)/2=74 mm

Average length of uncut chip = πd

Average length of uncut chip = π x 74 =232.45 mm

Thus, cutting ratio r

  r=0.31

Therefore, the cutting ratio equals 0.31.

Now, the shearing angle is given as

Next by substituting the values

\

Ф=18.03°

Concluding, the shearing angle is 18.03°.

Answer:

This is the solution code in Python:

1. alphabets = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J']
3. user_input = input("Enter number of rows and columns: ")
4. myArr = user_input.split(" ")
5. num_rows = int(myArr[0])
6. num_cols = int(myArr[1])
8. seats = []
10. for i in range(num_rows):
11. row = []
12. for j in range(num_cols):
13. row.append(alphabets[j])
14. seats.append(row)
16. output = ""
18. for i in range(len(seats)):
19. for j in range(len(seats[i])):
20. output += str(i + 1) + seats[i][j] + " "
22. print(output)

Explanation:

Initially, we create a small list of alphabets from A to J (Line 1).

We then request the user to enter the number of rows and columns (Line 3). Given that the input comes as a string (e.g., "2 3"), we utilize the split() method to separate the numbers into individual items in a list (Line 4). The first item (row number) is assigned to variable num_rows, while the second item (column number) goes to num_cols.

Subsequently, we construct the seats list with a nested for-loop (Lines 10-15). Once the seats list is formed, another nested for-loop generates the required output string as per the question (Lines 19-21).

Finally, the output is printed (Line 23). For example, an input of 2 3 results in the output:

1A 1B 1C 2A 2B 2C

Answer:

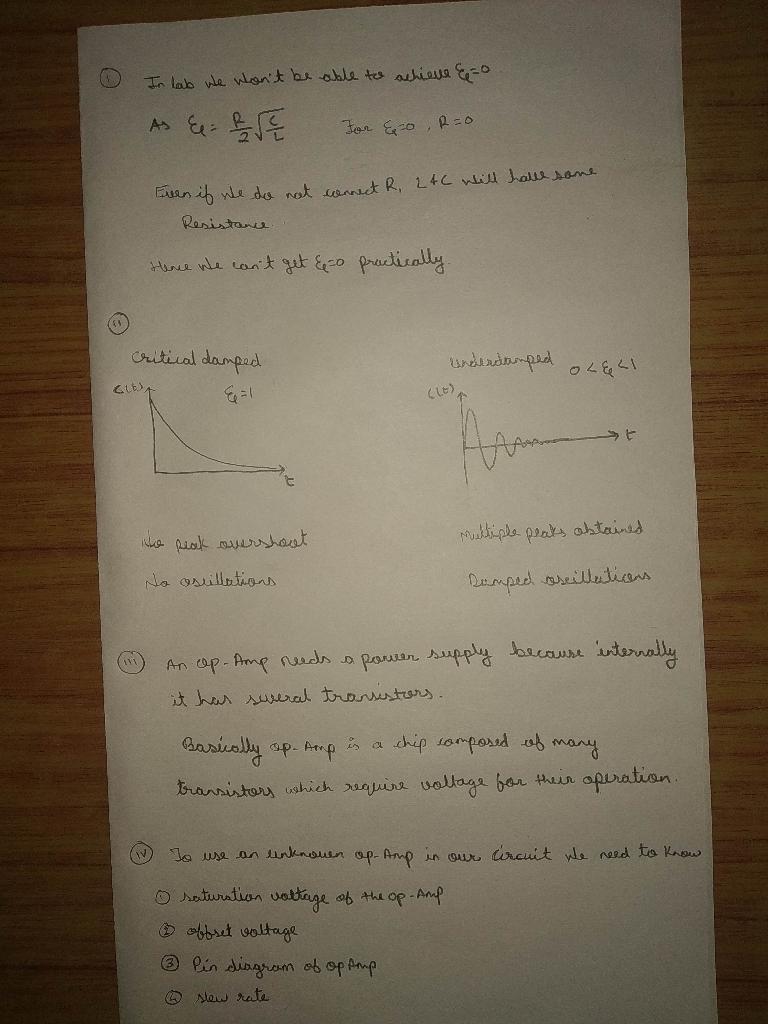

An attachment follows below

Explanation:

1) The formula used for the damping coefficient in a series RLC circuit.

If \xi = 0, it is possible to set c = 0 but an inductor will still possess some capacitance.

2) The behaviors of critically damped and underdamped systems are illustrated along with comments on their temporal responses.

4) While several answers might suffice, the four I’ve highlighted are the crucial parameters necessary about an unknown op-amp before utilizing it in a circuit.

Hope this addresses all your inquiries.
