Two parallel wires carry a current I in the same direction. Midway between these wires is a third wire, also parallel to the oth

er two, which carries a current 0.5 I, but in the direction opposite from the first two wires. Two more wires with 0.5 I, in the same direct as the third wire, are placed the same distance as the third wire but on either side of the first two wires. In which direction are the net forces on the outer wires?

Physics
2 answers:
Sav [3.1K]1 month ago
8 0

Answer:

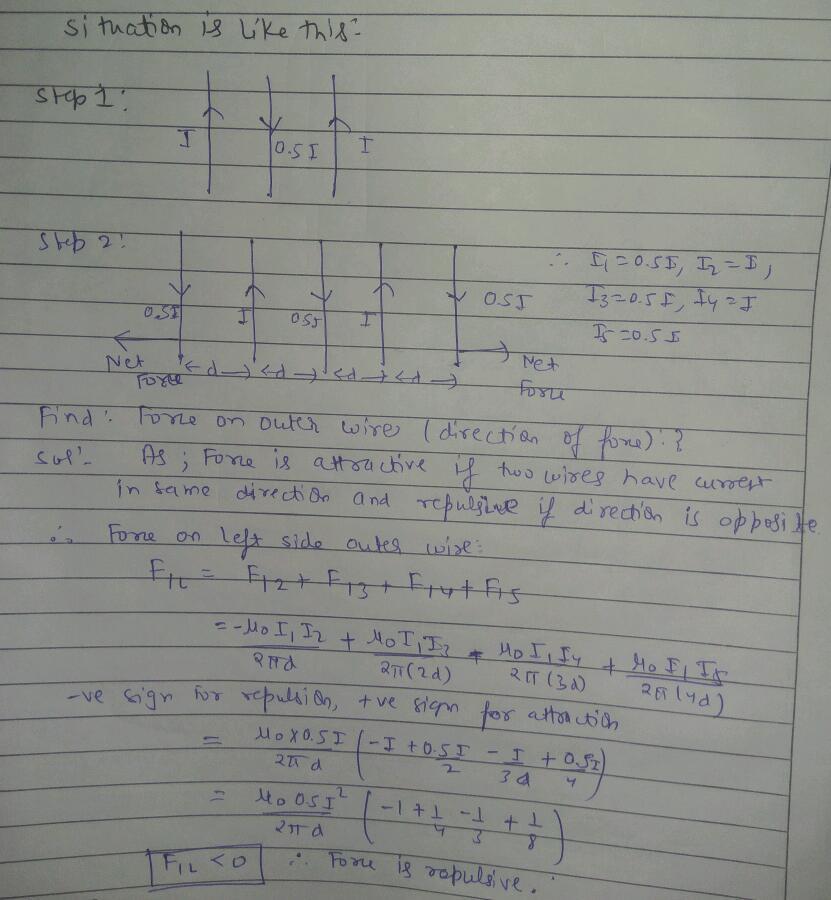

[ Find the attached file ]

Initially, I create a diagram illustrating the scenario. I considered the attractive force as positive and the repulsive force as negative. Afterward, I calculate the net force acting on the outer left wire caused by the other wires; the result is negative, indicating the presence of a repulsive force. Thus, the force is directed away from the wire, as depicted in the diagram.

Maru [3.3K]1 month ago
4 0
The force exerted is repulsive, meaning it moves away from the wire. To analyze this, one should create a diagram illustrating the scenario. If we define the attractive force as positive and the repulsive force as negative, computing the net force acting on the outer left wire from the other wires results in a negative value, indicating that the force is indeed repulsive, hence it points away from the wire as depicted in the accompanying figure.
You might be interested in
An object has kinetic energy of 324 J. If it’s speed is 9m/s, what is it’s mass?
ValentinkaMS [3465]
It is 8 kilograms. I had to provide more text, so here it is.
6 0
14 days ago
Read 2 more answers
Give the symbols for 4 species that are isoelectronic with the telluride ion, te2-.
Keith_Richards [3271]
<span>Response: Chlorine has 17 electrons, thus, for 1+ and 2+ ions, we require elements with 18 and 19 electrons, which are argon and potassium: Ar+ and K 2+. For 1- and 2- ions, we need elements with 16 and 15 electrons, namely sulfur and phosphorus, represented as S- and P 2-. It’s important to note that + ions indicate electron loss, while - ions reflect electron gain.</span>
3 0
1 month ago
A proton moves along the x-axis with vx=1.0×107m/s. As it passes the origin, what are the strength and direction of the magnetic
inna [3103]

Answer:

At this position, the magnetic field equals ZERO

Explanation:

The magnetic field produced by a moving charge is described as

B = \frac{\mu_0 qv sin\theta}{4\pi r^2}

Here, we determine the direction of the magnetic field using

\hat B = \hat v \times \hat r

Thus, we find

\hat B = \hat i \times (\hat i + 0\hat j + 0\hat k)

Leading to a magnetic field of ZERO

Consequently, when the charge moves in the same line as the given position vector, the magnetic field will be nonexistent

3 0
1 month ago
A soft drink (mostly water) flows in a pipe at a beverage plant with a mass flow rate that would fill 220 cans, 0.355 - l each,
Keith_Richards [3271]
Flow rate calculations yield 220 cans, each with a volume of 0.355 l, leading to 78.1 l/min or 1.3 l/s or 0.0013 m³/s.

At Point 2:
A2 = 8 cm² = 0.0008 m²
V2 = Flow rate/A2 = 0.0013/0.0008 = 1.625 m/s
P1 = 152 kPa = 152000 Pa

At Point 1:
A1 = 2 cm² = 0.0002 m²
V1 = Flow rate/A1 = 0.0013/0.0002 = 6.5 m/s
P1 =?
Height = 1.35 m

Using Bernoulli’s principle;
P2 + 1/2 * V2² / density = P1 + 1/2 * V1² / density + density * gravitational acceleration * height
=> 152000 + 0.5 * (1.625)² * 1000 = P1 + 0.5 * (6.5)² * 1000 + (1000 * 9.81 * 1.35)
=> 153320.31 = P1 + 34368.5
=> P1 = 1533210.31 - 34368.5 = 118951.81 Pa = 118.95 kPa
3 0
1 month ago
Read 2 more answers
A boy on a bicycle approaches a brick wall as he sounds his horn at a frequency 400 hz. the sound he hears reflected back from t
Softa [3030]
The question pertains to the change in frequency of a wave noted by an observer moving in relation to the source, indicating that the concept to invoke is "Doppler's effect."

The standard formula for the Doppler effect is:
f = (\frac{g + v_{r}}{g + v_{s}})f_{o} -- (A)

Note that we don’t need to be concerned with the signs here, as all entities are moving toward each other. If something was moving away, a negative sign would apply, but that is not relevant to this scenario.

Where,
g = Speed of sound = 340m/s.
v_{r} = Velocity of the observer relative to the medium =?.
v_{s} = Velocity of the source in relation to the medium = 0 m/s.
f_{o} =  Frequency emitted from the source = 400 Hz.
f = Frequency recognized by the observer = 408 Hz.

Substituting the given values into equation (A) will yield:

408 = ( \frac{340 + v_{r}}{340 + 0})*400

\frac{408}{400} = \frac{340 + v_{r}}{340}

Solving the above will result in,
v_{r} = 6.8 m/s

The correct result = 6.8m/s



7 0
1 month ago
