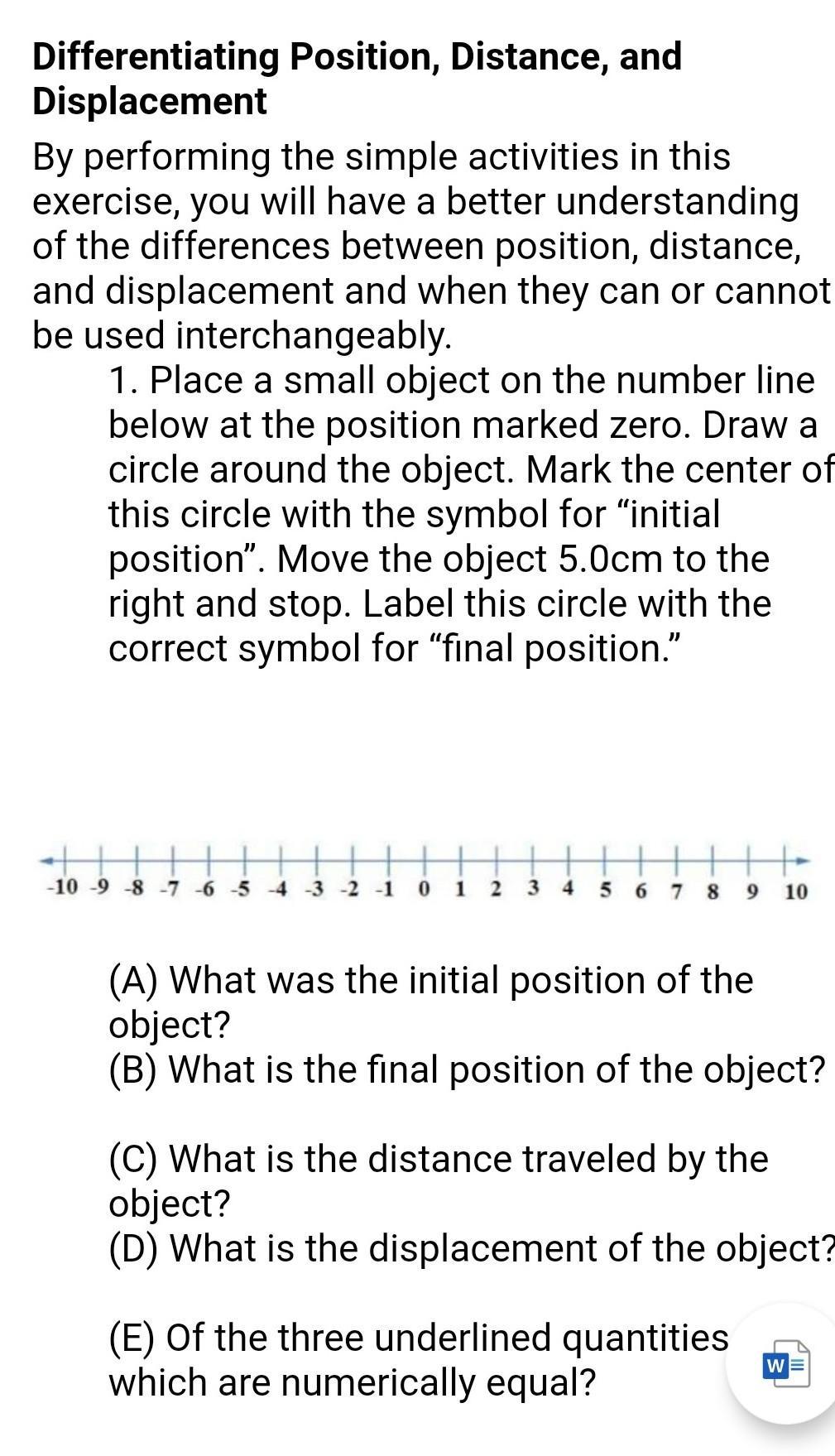

Place a small object on the number line below at the position marked zero. Draw a circle around the object. Mark the center of t

his circle with the symbol for “initial position”. Move the object 5.0cm to the right and stop. Label this circle with the correct symbol for “final position.” (A) What was the initial position of the object? (B) What is the final position of the object? (C) What is the distance traveled by the object? (D) What is the displacement of the object? (E) Of the three underlined quantities, which are numerically equal?

Physics

You might be interested in

The colored lines in the figure represent paths taken by different people walking around in a city. Assume that each city block

serg [3582]

Answer: 592.37m

Explanation:

Person D is represented by the blue line.

The total displacement is calculated by subtracting the initial position from the final position. Starting at (0,0), the path consists of moving down two blocks, then right six blocks, followed by moving up four blocks, and finally left one block.

Here, I consider the positive direction of the x-axis to the right and the positive direction of the y-axis as upward.

Thus, the new coordinates will be, with B representing a block:

P =(6*B - 1*B, -2*B + 4*B) = (5*B, 2*B)

Given that B = 110m

P = (550m, 220m)

The displacement corresponds to the length of the vector, since the change from the initial position (0,0) to P is simply P:

P = √(550^2 + 220^2) = 592.37m

4 0

3 months ago

How much energy is stored in the electric field of a 50-μm-diameter cell with a 7.0-nm-thick cell wall whose dielectric constant

Keith_Richards [3271]

:<span> </span><span>Assuming a cell comprises two concentric spheres, you would calculate the surface area of the inner sphere, which will be your A.

Having already determined your separation and dielectric constant, simply apply the formula mentioned near the end of your query and calculate 8.93x10^-11 Farads, approximately 89pF.</span>

7 0

1 month ago
