An imaginary cubical surface of side L has its edges parallel to the x-, y- and z-axes, one corner at the point x = 0, y = 0, z

= 0 and the opposite corner at the point x=L, y=L, z=L. The cube is in a region of uniform electric field E⃗ =E1i^+E2j^, where E1 and E2 are positive constants. Calculate the electric flux through the cube face in the plane x = 0 and the cube face in the plane x=L. For each face the normal points out of the cube.

Physics
1 answer:
Sav [3.1K]1 month ago
7 0

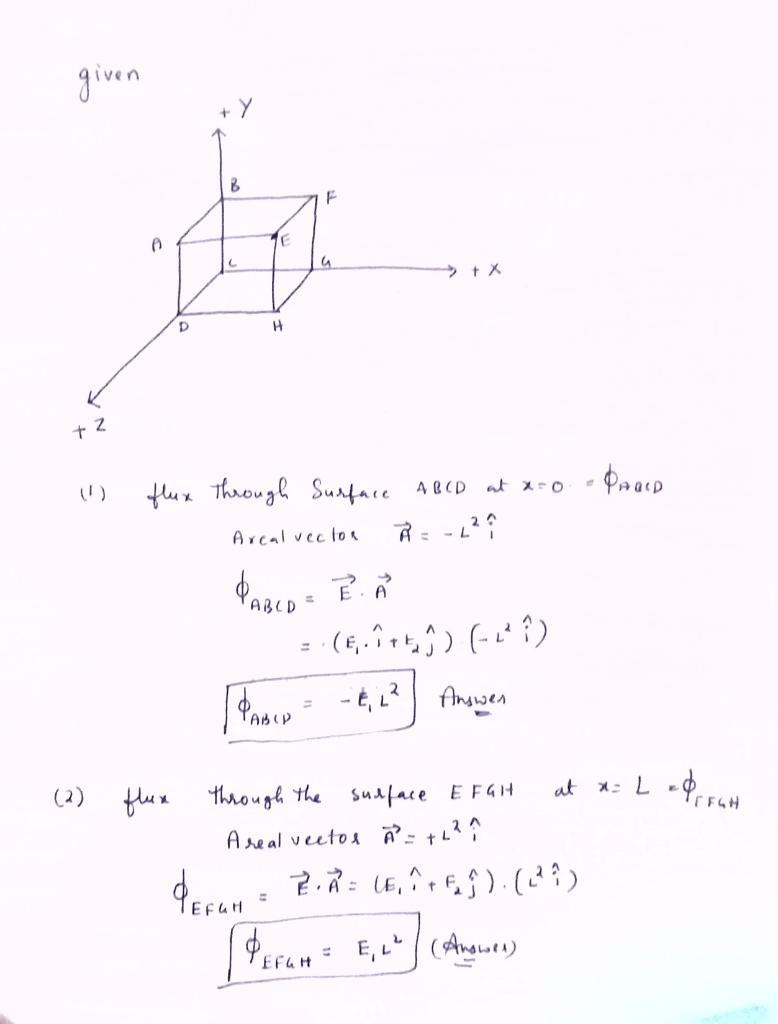

Refer to the attached file for the solution

You might be interested in
Two blocks are attached to opposite ends of a massless rope that goes over a massless, frictionless, stationary pulley. One of t
Softa [3030]

Answer:

1/7 kg

Explanation:

Refer to the attached diagram for enhanced clarity regarding the question.

One of the blocks weighs 1.0 kg and accelerates downward at 3/4g.

g denotes the acceleration due to gravity.

Let M represent the block with known mass, while 'm' signifies the mass of the other block and 'a' refers to the acceleration of body M.

Given M = 1.0 kg and a = 3/4g.

By applying Newton's second law; \sum fy = ma_y

For the body with mass m;

T - mg = ma... (1)

For the body with mass M;

Mg - T = Ma... (2)

Combining equations 1 and 2 gives;

+Mg -mg = ma + Ma

Ma-Mg = -mg-ma

M(a-g) = -m(a+g)

Substituting M = 1.0 kg and a = 3/4g into this equation leads to;

3/4 g-g = -m(3/4 g+g)

3/4 g-g = -m(7/4 g)

-g/4 = -m(7/4 g)

1/4 = 7m/4

Multiplying gives: 28m = 4

m = 1/7 kg

Hence, the mass of the other box is 1/7 kg

3 0
1 month ago
What is the mass of a cylinder of lead that is 1.80 in in diameter, and 4.12 in long. the density of lead is 11.4 g/ml?
Ostrovityanka [3204]
1950 g This is the result of lead being spread out in kilograms
5 0
29 days ago
Read 2 more answers
A small 175-g ball on the end of a light string is revolving uniformly on a frictionless surface in a horizontal circle of diame
kicyunya [3294]
For motion in a circle.

Centripetal acceleration is calculated as mv²/r = mω²r

where v represents linear velocity, r equals radius which is diameter/2 equating to 1/2 or 0.5m

. Here, m is the mass of the object, which is 175g or 0.175kg.

The angular speed, ω, is derived from Angle covered / time

                         = 2 revolutions per 1 second

                         = 2 * 2π  radians for each second

                         = 4π  radians per second

Thus, Centripetal Acceleration = mω²r = 0.175*(4π)² * 0.5. Utilize a calculator

                                                         ≈13.817  m/s²

. The acceleration's magnitude is approximately 13.817  m/s² and it is oriented towards the center of the circular path.

The tension in the string equates to m*a

                                   = 0.175*13.817

                                   = 2.418 N
5 0
29 days ago
Read 2 more answers
An aluminum "12 gauge" wire has a diameter d of 0.205 centimeters. The resistivity ρ of aluminum is 2.75×10−8 ohm-meters. The el
Sav [3153]

Complete Question

An aluminum "12 gauge" wire measures a diameter of 0.205 centimeters. The resistivity ρ of aluminum is 2.75×10−8 ohm-meters. The electric field E in the wire varies over time as E(t)=0.0004t2−0.0001t+0.0004 newtons per coulomb, where time is recorded in seconds.

At time 5 seconds, I = 1.2 A.

We need to find the charge Q traveling through a cross-section of the conductor from time 0 to time 5 seconds.

Answer:

The charge is  Q =2.094 C

Explanation:

The question indicates that

    The wire’s diameter is  d = 0.205cm = 0.00205 \ m

     The radius of the wire is  r = \frac{0.00205}{2} = 0.001025 \ m

     Aluminum's resistivity is 2.75*10^{-8} \ ohm-meters.

       The electric field variation is described as

         E (t) = 0.0004t^2 - 0.0001 +0.0004



The charge is effectively given by the equation

       Q = \int\limits^{t}_{0} {\frac{A}{\rho} E(t) } \, dt

Where A is the area expressed as

       A = \pi r^2 = (3.142 * (0.001025^2)) = 3.30*10^{-6} \ m^2

 Thus,

       \frac{A}{\rho} = \frac{3.3 *10^{-6}}{2.75 *10^{-8}} = 120.03 \ m / \Omega

Therefore

      Q = 120 \int\limits^{t}_{0} { E(t) } \, dt

By substituting values

      Q = 120 \int\limits^{t}_{0} { [ 0.0004t^2 - 0.0001t +0.0004] } \, dt

     Q = 120 [ \frac{0.0004t^3 }{3} - \frac{0.0001 t^2}{2} +0.0004t] } \left | t} \atop {0}} \right.

The question states that t =  5 seconds

           Q = 120 [ \frac{0.0004t^3 }{3} - \frac{0.0001 t^2}{2} +0.0004t] } \left | 5} \atop {0}} \right.

          Q = 120 [ \frac{0.0004(5)^3 }{3} - \frac{0.0001 (5)^2}{2} +0.0004(5)] }

         Q =2.094 C



5 0
1 month ago
Argon in the amount of 1.5 kg fills a 0.04-m3 piston cylinder device at 550 kPa. The piston is now moved by changing the weights
inna [3103]
275 kPa Explanation: Here the mass of the gas equals m=1.5 kg with an initial volume of V₁=0.04 m³ and an initial pressure P₁=550 kPa. As provided, the final volume is double the original volume, making V₂ equal to 2 V₁. Since the temperature remains constant, T₁=T₂=T. By substituting the values into the equation... results in final pressure being P₂=275 kPa.
3 0
1 month ago
