stira
1 month ago
12

The critical resolved shear stress for iron is 27 MPa (4000 psi). Determine the maximum possible yield strength for a single cry

stal of Fe pulled in tension.

Engineering
1 answer:
grin007 [219]1 month ago
7 0

Answer:

The following represents the answer.

Explanation:

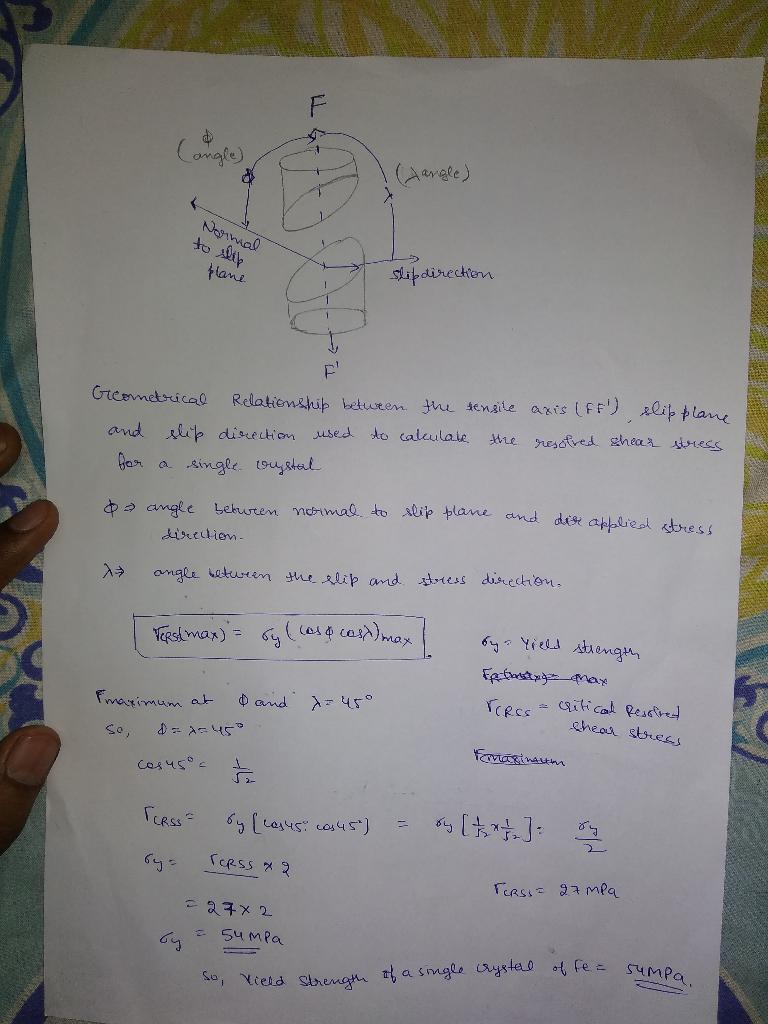

Calculation for the maximum yield strength of a single crystal of Fe subjected to tension can be found in the attached image.

The maximum yield strength value is 54 MPa.

You might be interested in
The molecular weight of a 10g rubber band
Viktor [230]
The response to this query is 1 * 10 g/mole = 10.
8 0
9 days ago
How does Accenture generate value for clients through Agile and DevOps?
Daniel [215]
By securing stakeholder needs throughout the project planning stage via thorough process documentation that is revised after each work cycle.
7 0
1 month ago
Read 2 more answers
Your driver license will be _____ if you race another driver on a public road, commit a felony using a motor vehicle, or are fou
iogann1982 [279]

Hello there,

In this scenario, the driver's license has been both confiscated and suspended.

Therefore, the answer is: A)

Achievements.

6 0
1 month ago
Read 2 more answers
6.15. In an attempt to conserve water and to be awarded LEED (Leadership in Energy and Environmental Design) certification, a 20
Viktor [230]

Explanation:

At a temperature of 33^{\circ} C and relative humidity of 86%, the humidity ratio stands at 0.0223 with a specific volume of 14.289.

At a temperature of 33^{\circ} C and relative humidity of 40%, the humidity ratio is 0.0066 while the specific volume is 13.535.

To determine the mass of air, the following formula can be used:

\begin{aligned}m _{1} &=\frac{ v }{ v }(1- w ) \\&=\frac{1 \times 10^{5}}{13.535}(1-0.0066) \\&=7339.49 lb / min \\v _{ a } &=\frac{ m _{1} v }{(1- w )} \\v _{ a } &=\frac{7339.49 \times 14.289}{(1-0.0223)} \\v _{ a } &=107266.0 ft ^{3} / min\end{aligned}

Now, we will calculate the volume

\begin{aligned}m _{ w } &=\frac{ v _{ a }}{ v _{ a }} w _{ a }-\frac{ v _{ i }}{ v _{ i }} w _{ i } \\&=\frac{107266.0}{14.289} \times 0.0223-\frac{100000}{13.535} \times 0.0066 \\&=118.64 lb / min\end{aligned}

The duration required to fill the cistern can be determined with the equation:

Time \(=\frac{\text { cistern volume }}{\text { removal water perminute volume }}\)

By substituting the values into the preceding formula, we find:

\(\frac{\left(15 \times 10^{3} L\right) \times\left(0.0353147 ft ^{3} / L \right)}{(118.641 b / min ) \times\left(\frac{1}{62.41 lb / ft ^{3}}\right)}\)\\\(=279.09\) minutes\\\(=4.65\) hours.

Thus, the hours necessary to fill the cistern amount to 4.65 hours.

3 0
16 days ago
In a heat-treating process, a 1-kg metal part, initially at 1075 K, is quenched in a closed tank containing 100 kg of water, ini
mote1985 [204]

Answer:

provided below

Explanation:

8 0
9 days ago
