Early investigators (including Thomas Young) measured the thickness of wool fibers using diffraction. One early instrument used

a collimated beam of 560 nm light to produce a diffraction pattern on a screen placed 30 cm from a single wool fiber.
part a: If the fiber's diameter was 18 μm, what was the width of the central maximum on the screen?

1 answer:

ValentinkaMS [1.1K]4 days ago

8 0

Answer:

$w= 1.867\times10^{-2}$

Explanation:

Provided:

fiber diameter d= 18 μm

screen distance D= 30 cm

wavelength λ= 560 nm

from this, we can determine the fringe width

$w=\frac{2\lambda D}{d}$

substituting the values yield

$w=\frac{2\times560\times10^{-9}\times0.3}{18\times10^{-6}$

$w= 1.867\times10^{-2}$

You might be interested in

A spinning wheel is slowed down by a brake, giving it a constant angular acceleration of 25.60 rad/s2. During a 4.20-s time inte

Yuliya22 [1153]

We will use the equations of rotational kinematics,

$\theta =\theta _{0} + \omega_{0} t+ \frac{1}{2}\alpha t^2$ (A)

$\omega^2= \omega^2_{0} +2\alpha\theta$ (B)

Here, $\theta$ and $\theta _{0}$ denote the final and initial angular displacements, respectively, whereas $\omega$ and $\omega_{0}$ represent final and initial angular velocities, and $\alpha$ is the angular acceleration.

We are provided with $\alpha = - 25.60 \ rad/s^2, \theta = 62.4 \ rad$ and $t = 4.20 \ s$ .

By substituting these values into equation (A), we have

$62.4 \ rad = 0 + \omega_{0} 4.20 \ s + \frac{1}{2} (- 25.60 \ rad/s^2) ( 4.20)^2 \\\\ \omega_{0} = \frac{220.5+ 62.4 }{4.20} =67.4 \ rad/s$

Now, using equation (B),

$\omega^2=(67.4 \ rad/s)^2 + 2 (- 25.60 \ rad/s^2)62.4 \ rad \\\\\ \omega = 36.7 \ rad/s$

This indicates that the wheel's angular speed at the 4.20-second mark is 36.7 rad/s.

4 0

8 days ago

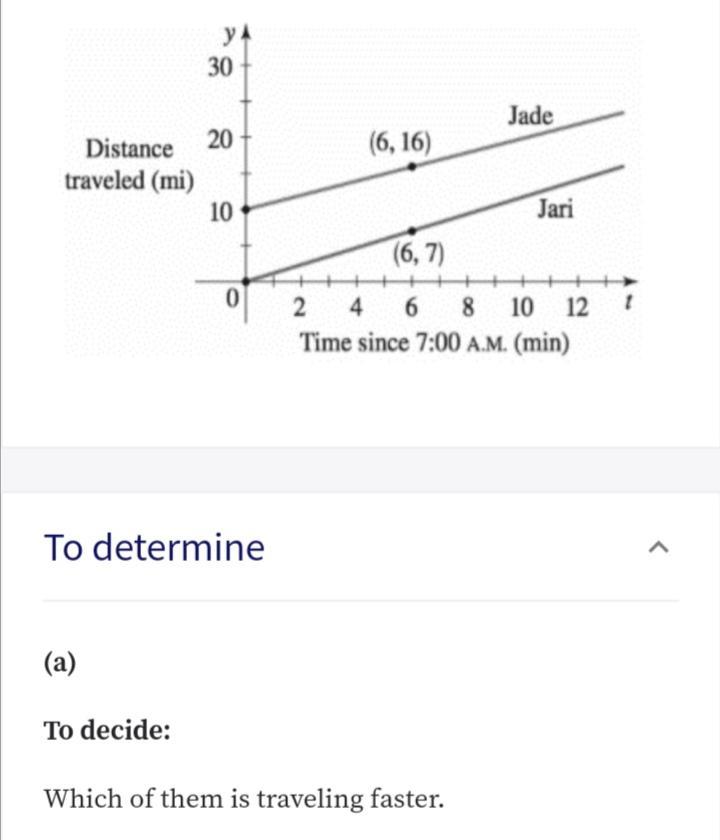

Jade and her roommate Jari commute to work each morning, traveling west on I-10. One morning Jade left for work at 6:45 A.M., bu
