Elan Coil
5 days ago
15

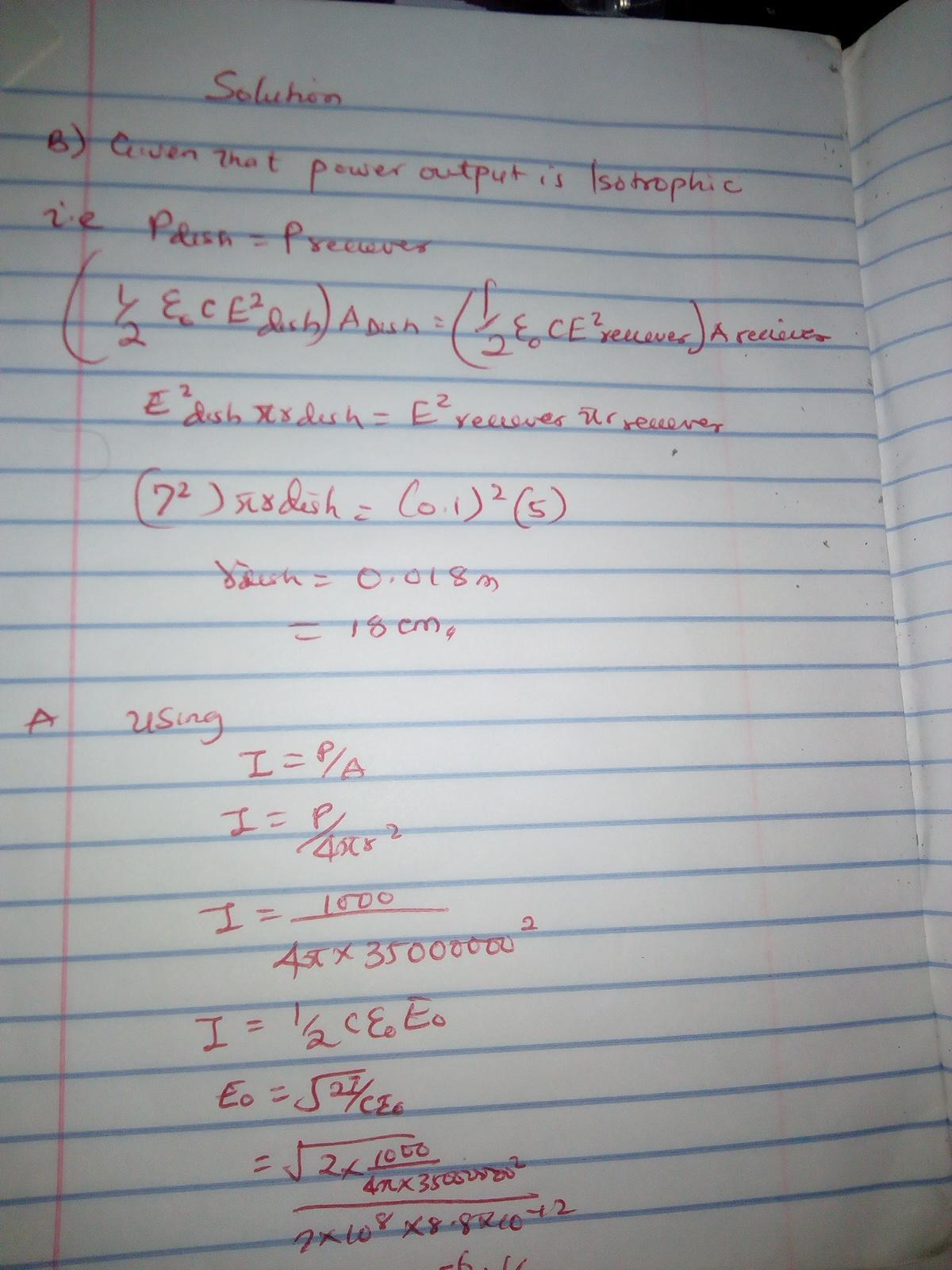

A satellite in geostationary orbit is used to transmit data via electromagnetic radiation. The satellite is at a height of 35,00

0 km above the surface of the earth, and we assume it has an isotropic power output of 1.0 kW (although, in practice, satellite antennas transmit signals that are less powerful but more directional).
Required:
a. Reception devices pick up the variation in the electric field vector of the electromagnetic wave sent out by the satellite. Given the satellite specifications listed in the problem introduction, what is the amplitude E0 of the electric field vector of the satellite broadcast as measured at the surface of the earth? Use ϵ0=8.85×10^−12C/(V⋅m) for the permittivity of space and c=3.00×10^8m/s for the speed of light.

b. Imagine that the satellite described in the problem introduction is used to transmit television signals. You have a satellite TV reciever consisting of a circular dish of radius R which focuses the electromagnetic energy incident from the satellite onto a receiver which has a surface area of 5 cm^2. How large does the radius R of the dish have to be to achieve an electric field vector amplitude of 0.1 mV/m at the receiver?

Physics
You might be interested in
On a day when the water is flowing relatively gently, water in the Niagara River is moving horizontally at 4.5 m/sm/s before sho
Maru [3345]

Answer:

a.3.29 m/s

b.3.3 m/s

c.14.8 m

d.15 m

Explanation:

We have the following specifics:

Initial Horizontal speed=v_x=4.5 m/s

Vertical component of initial speed=v_y=0

Vertical distance=y=-53 m

a.s=ut+\frac{1}{2}gt^2

Applying the formula and considering g as negative results in g=-9.8m/s^2

-53=0-\frac{1}{2}(9.8)t^2

53=4.9t^2

t^2=\frac{53}{4.9} s

t=\sqrt{\frac{53}{4.9}}=3.29m/s

b.Since the hundredths place exceeds 5, 1 is added to the tenths place, while other digits to the left remain unchanged and the digit to the right is replaced by 0.

t=3.3 m/s

c.Horizontal acceleration=a_x=0

x=v_xt=4.5\times 3.29=14.8 m

d.The digit in the tenths place at 8 surpasses 5, thus adding 1 to the units place, with all other digits on the left side unchanged and the right-side digit altered to 0.

Horizontal distance=15 m

7 0
3 months ago
Russ makes the diagram below to organize his notes about how Newton’s first law describes objects at equilibrium.
kicyunya [3294]
According to Newton's first law, an object remains at rest until an external force acts upon it, or an object in motion continues to move at a constant speed without accelerating.

Thus, x can solely represent a body coming to a halt. Accordingly, the last option is the most correct.
6 0
2 months ago
Read 2 more answers
Quando aquecemos água em nossas casas, ao nível do mar, utilizando um recipiente aberto, sua temperatura nunca ultrapassa os 100
Softa [3030]

Answer:

I do not communicate in Spanish

Explanation:

4 0
2 months ago
Other questions:
  • Find an expression for the acceleration a of the red block after it is released. use mr for the mass of the red block, mg for th
    6·2 answers
  • Estimate the monthly cost of using a 700-W refrigerator that runs for 10 h a day if the cost per kWh is $0.20.
    12·1 answer
  • To practice Problem-Solving Strategy 16.1 Sound Intensity. A rescue team is searching for Andrew, a geologist who was stranded w
    5·1 answer
  • A 3.50-meter length of wire with a cross-sectional area of 3.14 × 10-6 meter2 is at 20° Celsius. If the wire has a resistance of
    11·1 answer
  • A charge is placed on a spherical conductor of radius r1. This sphere is then connected to a distant sphere of radius r2 (not eq
    14·1 answer
  • How is earth outer layer different from a cracked hard-boiled egg?
    11·1 answer
  • A washing machine heats 10kg of water in each wash cycle. How much energy is saved by washing at 30'c instead of 50'c if the sta
    15·1 answer
  • A 0.3 mm long invertebrate larva moves through 20oC water at 1.0 mm/s. You are creating an enlarged physical model of this larva
    10·1 answer
  • A 45-mH inductor is connected to an ac source of emf with a frequency of 250 Hz and a maximum emf of 20 V. If the voltage across
    5·1 answer
  • An amount of energy is added to ice, raising its temperature from -10°C to -5°C. A larger amount of energy is added to the sam
    9·2 answers
