Can someone please help a struggling physics student?

Physics

1 answer:

Keith_Richards [3.2K]1 month ago

5 0

Part A:

What is the greatest height the ball will achieve?

Utilized kinematics formula:

$v_f^2=v_i^2+2ad$ , where $v_f$ signifies final velocity, $v_i$ denotes initial velocity, $a$ represents acceleration, and $d$ indicates distance traveled. In SI dimensions, velocity should be expressed in $m/s$ , acceleration in $m/s^2$ , and distance in $m$

It is noted that the initial launch velocity is 12.0 m/s upward. Upon reaching the peak height, the vertical speed of the ball will be 0 m/s; otherwise, it will not be apexing. This serves as our final velocity.

The singular acceleration within the context is that due to gravity, which is approximately $9.8\:\mathrm{ m/s^2}$ . The acceleration directed downward, while the ball ascends. For directional clarity, the acceleration must be represented as $-9.8\:\mathrm{m/s^2}$ . We possess three variables and seek to determine the fourth, which is the height. This will indicate the maximum height of the ball.

Substitute $v_i=12$ , $v_f=0$ , $a=-9.8$ to identify $d$ :

$0^2=12^2+2(-9.8)(d),\\0=144-19.6d,\\-19.6d=-144,\\d=\frac{-144}{-19.6}=7.34693877551\approx \boxed{7.35\text{ m}}$

What is the velocity of the ball upon impact with the ground?

This inquiry assesses a concept in physics rather than a specific formula. The vertical velocity upon impacting the ground will equal numerically but be inversely directed compared to the initial vertical velocity. This correlation occurs since the ball invests an equal duration ascending to maximum height as it does returning to the ground (the ball accelerates from initial velocity to 0 and then conversely from 0 to another velocity over the equivalent distance and duration). Given the initial vertical velocity of +12.0 m/s, the speed upon hitting the ground will be $\boxed{-12.0\text{ m/s}}$ . (The negative sign indicates direction. This is essential since velocity is a vector.)

Part B:

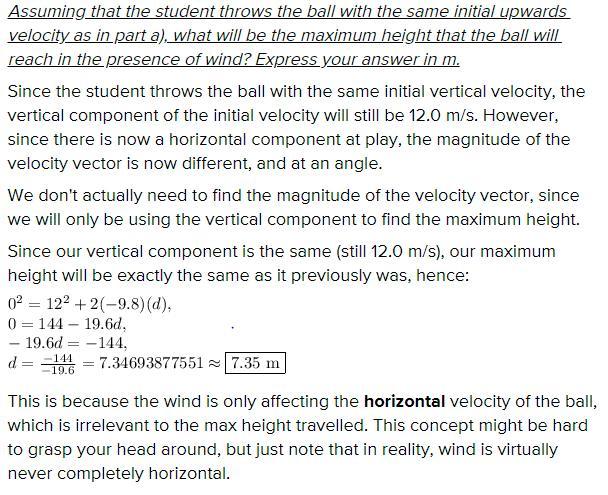

**Due to the character limit, I've added Part B's initial question as an image. Please consult the attached image for the response and explanation regarding Part B's first question. I apologize for any inconvenience.**

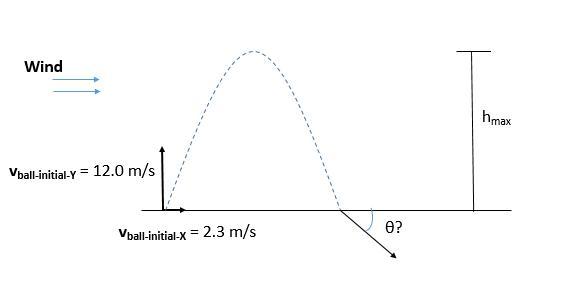

What is the velocity direction of the ball upon impact? Present your response in terms of the angle (in degrees) of the ball's velocity concerning the horizontal direction (refer to the provided figure).

This question engages a concept similar to that in part A's second question. The ball's launch vertical velocity is numerically equal but inversely directed to its final impact velocity. The horizontal velocity component remains consistent in both magnitude and direction throughout the entire launch since no horizontal forces intervene. Thus, the angle below the horizontal upon impact equates to the launch angle concerning the horizontal direction.

To achieve this, basic trigonometry must be applied for a right triangle setup. In any right-angle triangle, the tangent (tan) of an angle corresponds to the ratio of the opposite side to the adjacent side.

Let the launch angle with the horizontal be $\theta$ . The angle's opposite side corresponds to the vertical launch velocity (12.0 m/s), and the adjacent side represents the horizontal launch velocity (2.3 m/s). Hence, we formulate the following equation:

$\tan \theta=\frac{12.0\text{m/s}}{2.3\text{ m/s}}$

Taking the inverse tangent of both sides:

$\arctan (\tan \theta)=\arctan (\frac{12.0}{2.3})$

Simplifying via $\arctan(\tan \theta)=\theta \text{ for }\theta \in (-90^{\circ}, 90^{\circ})$ :

$\theta=\arctan(\frac{12.3}{2.3}),\\\theta =79.14989537\approx \boxed{79.15^{\circ}}$

We can express our answer, indicating that the velocity direction of the ball upon impacting the ground is $\boxed{\text{approximately }79.15^{\circ} \text{ below the horizontal}}$ or $\boxed{\text{approximately }-79.15^{\circ} \text{ to the horizontal}}$ .

You might be interested in

Starting with only the Balmer series light (visible light), how could we ensure that the solar panels generate a current that Ma

ValentinkaMS [3465]

The right answer is (a).

Solar panels create electric current through the photoelectric effect, which describes how photons strike certain material surfaces, resulting in the release of electrons when light with the correct frequency hits them. A photon will interact with an electron on the panel, causing it to be ejected from the panel's surface.

As the illumination on the panel becomes brighter, the intensity of the light rises, indicating an increase in the number of photons. Each photon has the potential to liberate an electron; thus, as the number of incoming photons rises, so does the quantity of freed electrons. Given that the photoelectric current reflects the rate at which these electrons flow, an increase in light intensity leads to a corresponding rise in the photoelectric current.

If the frequency of the light is increased without a change in brightness, the photoelectric current remains the same because the total number of photons does not increase. Yet, the electrons that are ejected do escape with higher kinetic energy. However, since the total number of electrons liberated stays unchanged, the current remains constant regardless of the electrons' increased energy. Thus, option b is incorrect.

Increasing the wavelength of the light means the energy of the photons decreases. This would cause the emitted electrons to have lower energy. However, if the brightness is consistent, the number of electrons remains the same, and as a result, there would be no change in the photoelectric current. Therefore, choice (c) is also incorrect.

The correct answer is (a). To generate the needed current, the brightness of the incident light must be increased.

8 0

1 month ago

Read 2 more answers

Determine the torque applied to the shaft of a car that transmits 225 hp

Keith_Richards [3271]

Incomplete query. The complete inquiry is as follows

Calculate the torque exerted on the shaft of a vehicle transmitting 225 hp at a rotation speed of 3000 rpm.

Response:

Torque=0.51 Btu

Analysis:

Given Information

Power=225 hp

Revolutions =3000 rpm

To determine

T( torque )=?

Process

As an object is moved by force over a distance, work is performed on that object. Similarly, when torque rotates an object through an angle, work is also accomplished.

$T(Torque)=\frac{W(Work)}{2\pi n(Revolutions) }$

8 0

25 days ago

The height (in meters) of a projectile shot vertically upward from a point 2 m above ground level with an initial velocity of 22

inna [3103]

1) The projectile's motion follows
, $h(t) = 2+22.5 t-4.9 t^2$
In order to determine the velocity, we must compute the derivative of h(t): Next, we will compute the speed at t=2 s and t=4 s: The negative value of the second speed suggests that the projectile has already attained its highest point and is now descending. 2) The maximum height of the projectile occurs when its speed equals zero: Thus, we have And solving yields
$t=2.30 s$

3) To determine the maximum height, we substitute the time at which the projectile reaches this peak into h(t), specifically t=2.30 s: 4) The time at which the projectile lands is when the height reaches zero; h(t)=0, which leads to This results in a second-degree equation, producing two answers: the negative root can be disregarded as it lacks physical significance; the second root is
$t=4.68 s$
, which indicates the landing time of the projectile. 5) The moment the projectile impacts the ground corresponds to the velocity at time t=4.68 s:
$v(4.68 s)=22.5-9.8\cdot 4.68 =-23.36 m/s$
, carrying a negative sign to denote a downward direction.

8 0

15 days ago

Incoming solar radiation (light energy) is absorbed by the Earth's surface and converted to outgoing infrared radiation (heat en

Softa [3030]

An increase in temperature (Global warming) is observed. The solar radiation is transformed into heat energy absorbed by Earth's surface. In line with the law of conservation of energy, energy can only transition forms rather than disappear. If an increasing quantity of energy accumulates on Earth with minimal release, this imbalance in energy demand leads to a rise in temperature due to excessive heat absorption, largely a result of pollution from fossil fuel combustion releasing CO2 and other harmful emissions. Ordinarily, the residual solar energy would escape back into space, but CO2 and similar contaminants trap this heat, thus elevating Earth's temperature.

8 0

1 month ago

the minute hand on a clock is 9 cm long and travels through an arc of 252 degrees every 42 minutes. To the nearest tenth of a ce

Ostrovityanka [3204]

Answer:

The distance covered by the minutes hand is 39.60 cm.

Explanation:

Note: A clock has a circular shape, where the minutes hand acts as the radius, and its motion creates an arc.

Length of an arc is calculated as ∅/360(2πr)

L = ∅/360(2πr).................... Equation 1π

Here, L represents the arc’s length, ∅ is the angle made by the arc, and r is the arc’s radius.

Given: ∅ = 252°, r = 9 cm, π = 3.143.

Upon substituting these values into equation 1,

L = 252/360(2×3.143×9)

L = 0.7×2×3.143×9

L = 39.60 cm.

Thus, the distance traversed by the minutes hand is 39.60 cm.
