NO2 can react with the NO in smog, forming a bond between the N atoms. Draw the structure of the resulting compound, including f

ormal charges.

Chemistry
1 answer:
alisha [2.8K]25 days ago
6 0

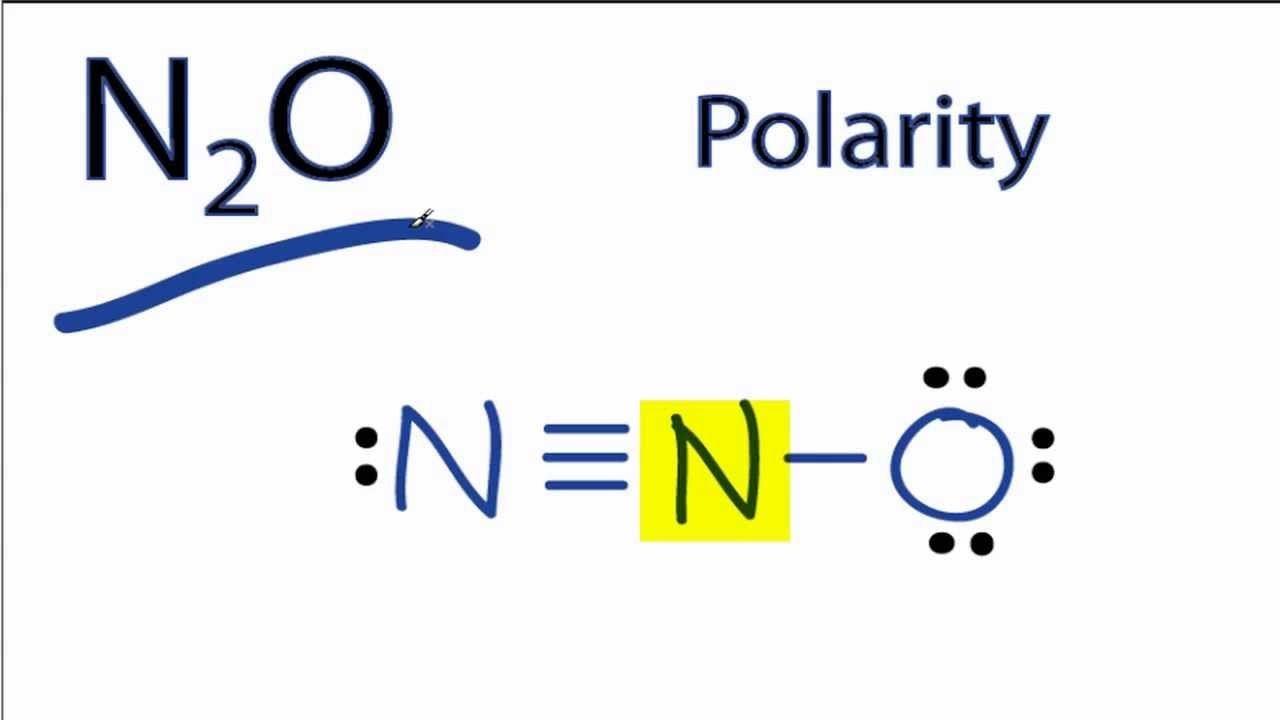

To begin, we need to document the balanced chemical equation featuring the specified reactants: NO₂ + NO → N₂O + O₂. The Lewis structure of the primary product is depicted in the accompanying image. To calculate the formal charge for each atom, you can use the following formula: Formal Charge = Valence electrons - Non-bonding valence electrons - (Bonding electrons/2). For the leftmost nitrogen: Formal charge = 5 - 2 - 6/2 = 0. For the central nitrogen: Formal charge = 5 - 0 - 8/2 = 1. For oxygen: Formal charge = 6 - 6 - 2/2 = -1.
You might be interested in
At what temperature would the volume of a gas be 0.550 L if it had a volume of 0.432 L at –20.0 o C?
castortr0y [2906]
To find the temperature at which the volume of the gas would be 0.550 L, given that it is 0.432 L at -20.0 °C, apply Charles’s Law.

The formula is v1/T1 = v2/T2
Known values:
V1 = 0.550 L
T1 = ?
T2 = -20°C + 273 = 253 K
V2 = 0.432 L

Rearranging for T1:
T1 = (V1 × T2) / V2

Calculating:
T1 = (0.55 L × 253) / 0.432 L = 322.11 K or 49.11°C
8 0
1 month ago
Read 2 more answers
A 3.0-L sample of helium was placed in container fitted with a porous membrane. Half of the helium effused through the membrane
Tems11 [2624]

Explanation:

The rate at which gases effuse is inversely related to the square root of their molar masses.

In this case, half of the helium (1.5 L) passed through the membrane in 24 hours. Therefore, we can calculate the effusion rate of He gas as follows.

          \frac{1.5 L}{24 hr}

            = 0.0625 L/hr

Given that the molar mass of He is 4 g/mol and for O_{2} it is 32 g/mol.

Now,

   \frac{\text{Rate of He}}{\text{Rate of Oxygen}} = \sqrt{\frac{32}{4}

                               = 2.83

Thus, the effusion rate of O_{2} = \frac{\text{Rate of He}}{2.83}

                       = \frac{0.0625 L/hr}{2.83}

          Rate of O_{2} = 0.022 L/hr.

This implies that 0.022 L of O_{2} gas will effuse in one hour.

Consequently, to find the duration needed for 1.5 L of O_{2} gas to effuse, we calculate as follows.

         \frac{1.5 L}{0.022 L/hr}

                = 68.18 hours

Thus, we can conclude that it will require 68.18 hours for half of the oxygen to effuse through the membrane.

3 0
27 days ago
Two hypothetical ionic compounds are discovered with the chemical formulas XCl2 and YCl2, where X and Y represent symbols of the
Tems11 [2624]

Answer:

THE MOLAR MASS OF XCL2 IS 400 g/mol

THE MOLAR MASS OF YCL2 IS 250 g/mol.

Explanation:

We derive the molar mass of XCl2 and YCl2 by recalling the molar mass formula when both mass and the number of moles are known.

Number of moles = mass / molar mass

Molar mass = mass / number of moles.

For XCl2,

mass = 100 g

number of moles = 0.25 mol

Thus, molar mass = mass / number of moles

Molar mass = 100 g / 0.25 mol

Molar mass = 400 g/mol.

For YCl2,

mass = 125 g

number of moles = 0.50 mol

Molar mass = 125 g / 0.50 mol

Molar mass = 250 g/mol.

Accordingly, the molar masses for XCl2 and YCl2 are 400 g/mol and 250 g/mol, respectively.

3 0
1 month ago
If the density of carbon tetrachloride is 1.59 g/ml, what is the volume in l, of 4.21 kg of carbon tetrachloride
Tems11 [2624]

Density is defined as the mass-to-volume ratio. The formula for density can be expressed as:

density = \frac{mass}{volume}    -(1)

The density for carbon tetrachloride is provided as 1.59 g/ml   (given).

The mass of carbon tetrachloride is 4.21 kg   (as given).

Since, 1 kg = 1000 g

Thus, 4.21 kg = 4210 g

Utilizing the values in formula (1):

1.59 g/mL = \frac{4210 g}{volume}

volume = \frac{4210 g}{1.59 g/mL}

volume = 2647.799 mL

Since, 1 mL = 0.001 L

Hence, 2647.799 mL = 2.65 L

The resulting volume of carbon tetrachloride is 2.65 L.


6 0
1 month ago
Does the result of the calculation in question 3 justify your original assumption that all of the SCN^- is in the form of FeNCS^
lorasvet [2668]
Fe 3+ + SCN- --> FeSCN 2+

<span>.......Fe 3+.......SCN-.........FeSCN 2+ </span>
<span>I.......0.04..........0.001.............. </span>
<span>C........-x...............-x............. </span>
<span>E.....0.04-x.....0.001-x...........x </span>

<span>Keq = 203.4 = x / (0.04-x)(0.001-x) </span>
<span>203.4 = x / (x^2 - 0.041x + 4x10^-5) </span>
<span>203.4x^2 - 8.34x + 0.00094 = x </span>
<span>203.4x^2 - 9.34x + 0.00094 = 0 </span>
<span>x = -0.0001M or 0.0458M </span>
<span>therefore, according to the calculated Keq, all of the SCN- and Fe 3+ would be fully converted into FeSCN 2+</span>
5 0
18 days ago
