Three flat layers of transparent material are stacked upon one another. The top layer has index of refraction n1, the middle has

n2 and the bottom one has n3. If n1 > n2 > n3, and if a ray of light strikes the top layer at an angle of incidence, in which layer is the angle of refraction the greatest? Why?
a. the bottom layer
b. the top layer
c. Once the ray enters the touching layers, the angle of refraction remains constant.
d. the middle layer

1 answer:

kicyunya [3.2K]2 months ago

7 0

Response:

a. the lowest layer

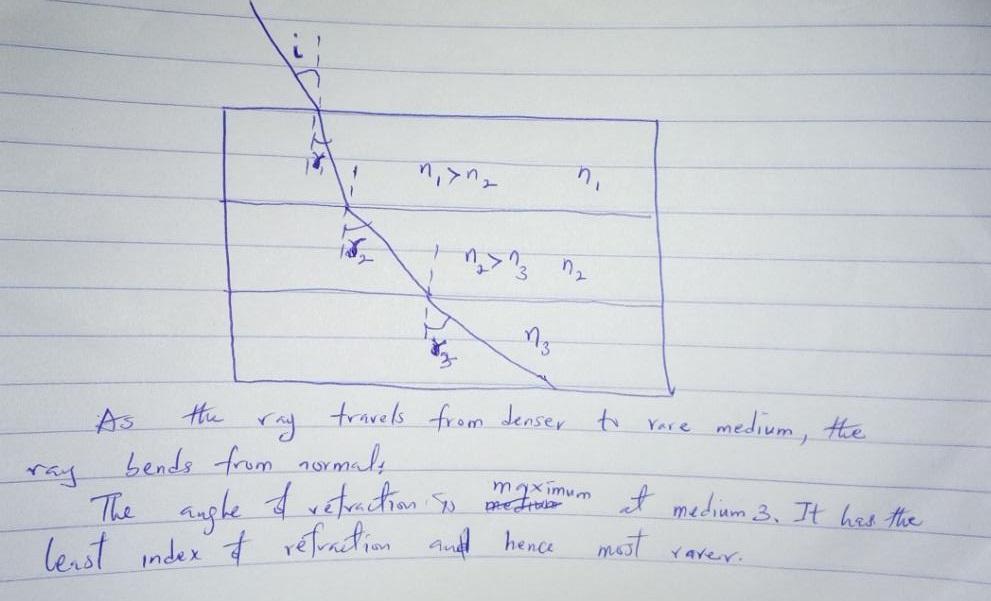

Clarification:

This layer has the least refractive index, thus being the most rarefied.

You might be interested in

Subsurface ocean currents continually circulate from the warm waters near the equator to the colder waters in other parts of the

ValentinkaMS [3465]

<span>The primary factor behind these currents is the </span>variability in the density of ocean waters.

8 0

1 month ago

If low CVP precipitates a suction alarm, rapid infusion of volume can remedy the situation after dropping the P-level.

kicyunya [3294]

Response:

d

Clarification:

8 0

2 months ago

A dog of mass 10 kg sits on a skateboard of mass 2 kg that is initially traveling south at 2 m/s. The dog jumps off with a veloc

inna [3103]

Answer:

17 m/s south

Explanation:

$m_1$ Mass of the dog = 10 kg

$m_2$ Mass of skateboard = 2 kg

v = Combined velocity = 2 m/s

$u_1$ Velocity of the dog = 1 m/s

$u_2$ Velocity of skateboard

In this scenario, linear momentum is conserved

$(m_1+m_2)v+m_1u_1+m_2u_2=0\\\Rightarrow u_2=-\dfrac{(m_1+m_2)v+m_1u_1}{m_2}\\\Rightarrow u_2=-\dfrac{(10+2)2+10\times 1}{2}\\\Rightarrow u_2=-17\ m/s$

The speed of the skateboard post-dog jump will be 17 m/s south, considering north as the positive direction

3 0

1 month ago

A resistor with resistance R and an air-gap capacitor of capacitance C are connected in series to a battery (whose strength is "

kicyunya [3294]

Answer:

a) Q = C*emf

b) Decrease in electric field strength and electric potential

c) Initial current through the resistor = emf/R

d) The final charge = K*C*emf

Explanation:

a) The resistors and capacitors are linked in series with the battery

According to Kirchoff's voltage law, the total voltage in the circuit must equal zero

Let $V_{R}$ represent the Voltage across the Resistor

$V_{c}$ and

represent the Voltage across the capacitor

Implementing KVL;

$emf - V_{R} - V_{c} = 0\\$

.........................(1)

Since this is a series connection, the same current traverses through the circuit

$V_{R} = IR\\Q = CV_{c} \\V_{c} = Q/C$

Integrating $V_{c}$ and $V_{R}$ into equation (1)

$emf - IR - Q/C = 0$

Initially, as the capacitor reaches full charge, the current will drop to zero because of equilibrium

$I = 0A\\emf = Q/C\\Q = C* emf$

b) When the plastic sheet is inserted between the plates, current begins to flow because both the electric field intensity and electric potential decrease. As a result, charge diminishes, leading to current flow

c) The current through the resistor equates to the total current within the circuit (given the series connection)

$I = I_{o} \exp(\frac{-t}{RC} )\\At time the initial time, t\\t = 0\\ I_{o} = \frac{emf}{R} \\$

Substituting the values of t and I₀ into the aforementioned formula for I

$I = \frac{emf}{R} \exp(0)\\I = \frac{emf}{R}$

d) Note: The initial charge on the capacitor equals C * emf

Following the insertion of the plastic, the new charge will be:

$Q = K* Q_{initial} \\Q_{initial} = C *emf\\Q_{final} = KCemf$

4 0

1 month ago

A wildlife researcher is tracking a flock of geese. The geese fly 4.0 km due west, then turn toward the north by 40° and fly ano

serg [3582]

Answer:

(a). The distance traveled is 7.06 km towards the west.

(b). Their displacement magnitude is 7.51 km.

Explanation:

The information given states that,

The geese initially move 4.0 km directly west, then alter course to the north at a 40° angle, covering an additional 4.0 km.

Based on the diagram,

(a). To determine the distance

We will apply the distance formula

$AD=AB+BD$

Insert the values into the equation

$D= 4+4.0\cos40^{\circ}$

$D=7.06\ km$

The resultant distance is 7.06 km westward.

(b). We will find the total displacement's magnitude

Using the displacement formula

$AC=\sqrt{(CD)^2+(AD)^2}$

Insert the values into the equation

$AC=\sqrt{(4.0\sin40)^2+(7.06)^2}$

$AC=7.51$

The total displacement magnitude is 7.51 km.

In conclusion, (a). The traveled distance is 7.06 km towards the west.

(b). The magnitude of their total displacement is 7.51 km.

7 0
