Stells
17 days ago
7

What is the maximum value the string tension can have before the can slips? The coefficient of static friction between the can a

nd the ground is 0.76.

Physics
1 answer:
serg [1.1K]17 days ago
8 0

Response:

T = 38.38 N

Explanation:

In this case

mass of can = m = 3 kg

g= 9.8 m/sec²

angle θ = 40°

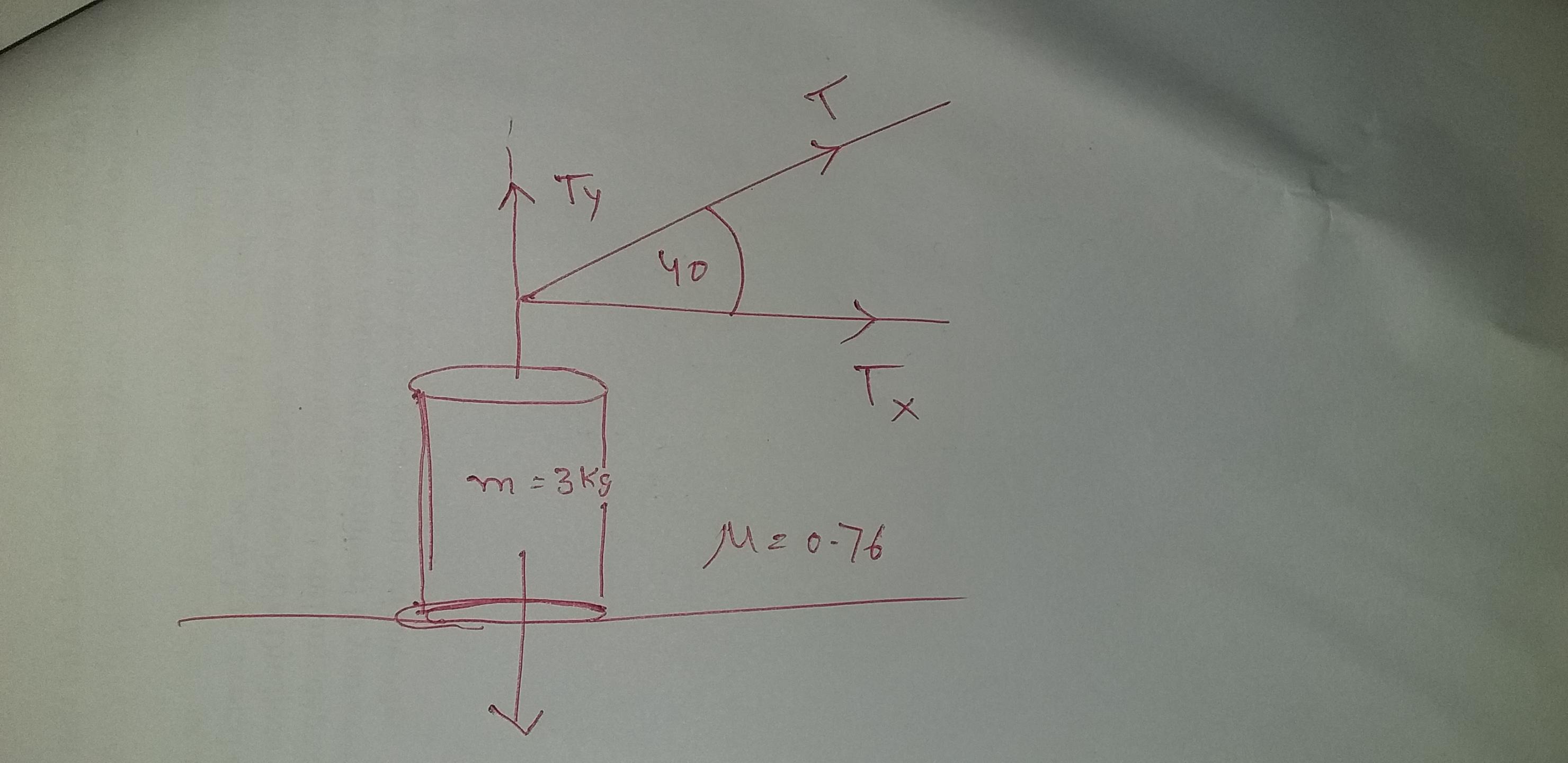

As illustrated, we observe the vertical and horizontal components of the tension force T.

If the can is on the verge of slipping, then the horizontal component of the tension force should equal the frictional force.

First, we calculate the frictional force

Fs = μ R

where

μ = 0.76

R = weight of the can = mg = 3 × 9.8 = 29.4 N

Now, regarding the horizontal component of tension, we have

Tx = T cos 40° = T × 0.7660 N

which leads to T × 0.7660 = 29.4

Thus, T = 38.38 N

You might be interested in
The position of an object is given by x = at3 - bt2 + ct,where a = 4.1 m/s3, b = 2.2 m/s2, c = 1.7 m/s, and x and t are in SI un
serg [1198]

Answer:

The response to your inquiry is: 15 m/s²

Explanation:

Equation    x = at³ - bt² + ct

a = 4.1 m/s³

b = 2.2 m/s²

c = 1.7 m/s

First we calculate x at t = 4.1 s

x = 4.1(4.1)³ - 2.2(4.1)² + 1.7(4.1)

x = 4.1(68.921) - 2.2(16.81) + 6.97

x = 282.58 - 36.98 + 6.98

x = 252.58 m

Now we calculate speed

v = x/t = 252.58/ 4.1 = 61.6 m/s

Finally

acceleration = v/t = 61.6/4.1 = 15 m/s²

6 0
1 day ago
Ronnie kicks a playground ball with an initial velocity of 16 m/s at an angle of 40° relative to the ground. What is the approxi
Softa [913]
The calculation for the horizontal component is performed as follows:
Vhorizontal = V · cos(angle)

For your instance, Vhorizontal = 16 · cos(40) equates to 12.3 m/s

Conclusion: 12.3 m/s
7 0
13 days ago
Read 2 more answers
A glass tube is filled with hydrogen gas.  An electric current is passed through the tube, and the tube begins to glow a pinkish
inna [987]
The initial description is the accurate one.
6 0
11 days ago
Read 2 more answers
A supersonic nozzle is also a convergent–divergent duct, which is fed by a large reservoir at the inlet to the nozzle. In the re
Softa [913]

Answer:

155.38424 K

2.2721 kg/m³

Explanation:

P_1 = Reservoir pressure = 10 atm

T_1 = Reservoir temperature = 300 K

P_2 = Exit pressure = 1 atm

T_2 = Exit temperature

R_s = Specific gas constant = 287 J/kgK

\gamma = Specific heat ratio = 1.4 for air

Assuming isentropic flow

\frac{T_2}{T_1}=\frac{P_2}{P_1}^{\frac{\gamma-1}{\gamma}}\\\Rightarrow T_2=T_1\times \frac{P_2}{P_1}^{\frac{\gamma-1}{\gamma}}\\\Rightarrow T_2=00\times \left(\frac{1}{10}\right)^{\frac{1.4-1}{1.4}}\\\Rightarrow T_2=155.38424\ K

Flow temperature at exit is 155.38424 K

Density at exit can be derived using the ideal gas equation

\rho_2=\frac{P_2}{R_sT_2}\\\Rightarrow \rho=\frac{1\times 101325}{287\times 155.38424}\\\Rightarrow \rho=2.2721\ kg/m^3

Flow density at exit measures 2.2721 kg/m³

4 0
11 days ago
What happens to the particles of a liquid when energy is removed from them?
Softa [913]

Response:

D: The distance among the particles diminishes

Clarification:

Removing energy reduces the activity of molecules, similar to how one slows down in cold temperatures (I believe).

3 0
10 days ago
