Lisa
1 month ago
5

An uninsulated, thin-walled pipe of 100-mm diameter is used to transport water to equipment that operates outdoors and uses the

water as a coolant. During particularly harsh winter conditions, the pipe wall achieves a temperature of −15°C and a cylindrical layer of ice forms on the inner surface of the wall. If the mean water temperature is 3°C and a convection coefficient of 2000 W/m2 · K is maintained at the inner surface of the ice, which is at 0°C, what is the thickness of the ice layer?

Engineering
1 answer:
Mrrafil [318]1 month ago
3 0

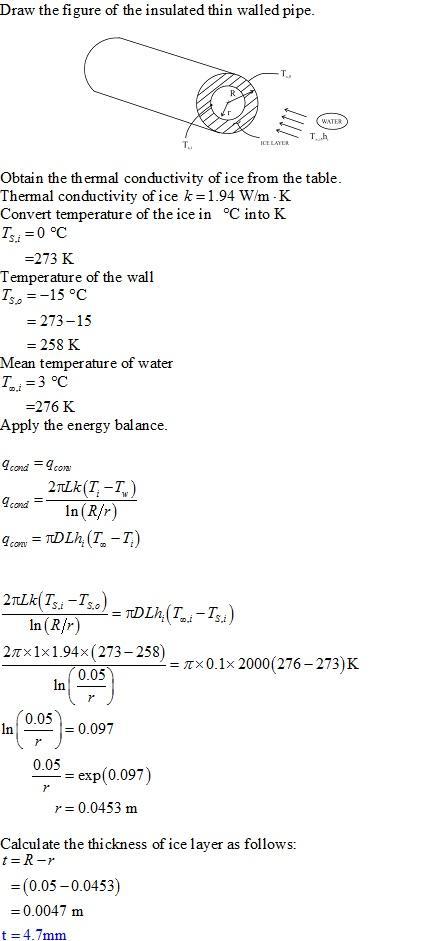

The explanation and answer for this query can be found in the attached document below.

You might be interested in
The top 3 most popular male names of 2017 are Oliver, Declan, and Henry according to babynames. Write a program that modifies th
Viktor [391]

Answer:

The Python code is provided below with suitable comments

Explanation:

# convert list to set

male_names = set(['Oliver','Declan','Henry'])

# get name for removal and addition from user

remove_name = input("Enter remove name: ")

add_name = input("Enter add name: ")

# remove specified name from set

male_names.remove(remove_name)

# add new name to set

male_names.add(add_name)

# sort the resulting set

a = sorted(male_names)

# output the sorted set

print(a)

7 0
3 months ago
6. You are evaluating flow through an airway. The current flow rate is 10 liters per minute with a fixed driving pressure (P1) o
iogann1982 [368]

Answer:

B) P1 would have to increase to sustain the flow rate (correct)

C) Resistance would rise (correct)

Explanation:

Flow rate is measured at 10 liters per minute

Driving pressure (P1) stands at 20 cm H2O

Fixed downstream pressure (P2) is 5 cm H2O

The accurate statements when the lumen is pinched in the center of the tube are: P1 will increase to maintain the flow rate, and resistance will rise. This occurs because pinching the lumen decreases its diameter, leading to higher resistance, which is linearly related to pressure, thus P1 will also increase.

The incorrect statement is: the flow would decrease.

6 0
2 months ago
simple power system consists of a dc generator connected to a load center via a transmission line. The load power is 100 kW. The
iogann1982 [368]
A.) 591.7 v B.) 991.7 v C.) 59.7 % D.) 47.9 kW E.) 247925 W F.) 59.7 %
5 0
1 month ago
A hydrogen-filled balloon to be used in high altitude atmosphere studies will eventually be 100 ft in diameter. At 150,000 ft, t
mote1985 [299]

Answer:

The calculated result is 11.7 ft

Explanation:

You can apply the combined gas law, which incorporates Boyle's law, Charles's law, and Gay-Lussac's Law, because hydrogen demonstrates ideal gas behavior under these specific conditions.

\frac{p_1 V_1}{T_1} = \frac{p_2 V_2}{T_2}

where the subscripts indicate "p" for pressure, "V" for volume, and "T" for temperature (in Kelvin) at varying moments. Let's denote t_1 as the balloon at 150,000 ft so

p_1 = 0.14 \ lb/in^2

V_1 = \frac{4}{3} \pi R_1^3 = 523598.77 \ ft^3

and T_1 = -67^\circ F = 218.15\ K.

Then t_2 represents the point at which the balloon is on the ground.

p_2 = 14.7 \ lb/in^2 and T_2 = 68^\circ F = 293.15\ K.

Based on the first equation

V_2 = \frac{p_1 V_1 T_2}{T_1 p_2}, we find

V_2 = 6701.07 ft^3 and consequently the radius turns out to be

R_2 = \sqrt[3]{\frac{3 V_2}{4 \pi}} = 11.7 \ ft.

5 0
