Three return steam lines in a chemical processing plant enter a collection tank operating at steady state at 1 bar. Steam enters

inlet 1 with flow rate of 0.8 kg/s and a quality of 0.9. Steam enters inlet 2 with flow rate of 2 kg/s at 200 C. Steam enters inlet 3 with flow rate of 1.2 kg/s at 95 C. Steam exits the tank at 1 bar. The rate of heat transfer from the collection tank is 40 kW. Neglecting kinetic and potential engery effects, determine for the steam exiting the tank
(a) the mass flow rate, in kg/s
(b) the temperature, in degrees C

1 answer:

alex41 [359]1 month ago

5 0

Response:

a) 4 kg/s

b) 99.61 °C

Rationale:

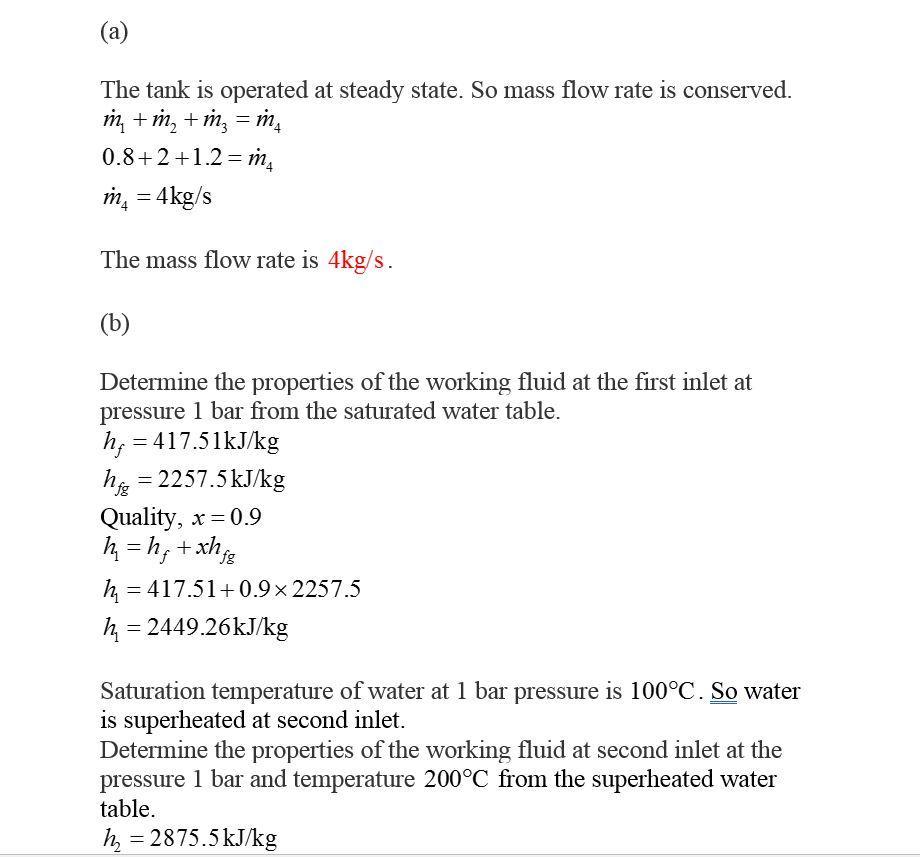

Refer to the pictures provided.
