Marina CMI
2 months ago
15

A 5kg bucket hangs from a ceiling on a rope. A student attaches a spring scale to the buckets handle and pulls horizontally on t

he scale until reads 15.0 N.

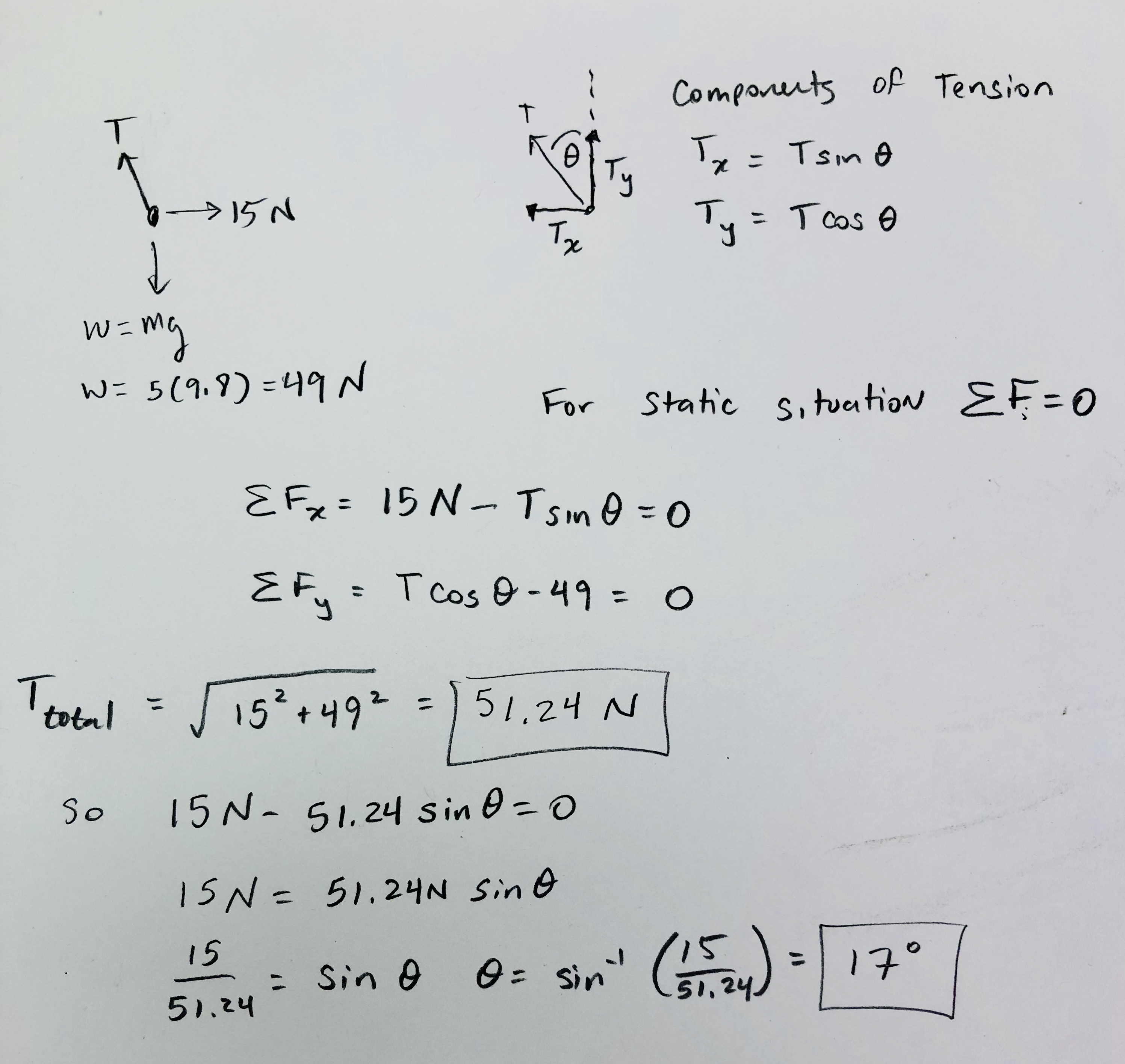

a. draw a force diagram that will be useful in answering the questions below

b. calculate the tension in the rope attached in the rope attached to the ceiling when the spring scale reads 15N.

c. Determine the measure of the angle marked in the diagram

have the force diagram but cannot figure out the angle or how to calculate the tension.

Physics
1 answer:
Keith_Richards [3.2K]2 months ago
6 0

I am unsure of the angle in your diagram; therefore, I utilized the vertical angle instead.

You might be interested in
What is the mass of a cylinder of lead that is 1.80 in in diameter, and 4.12 in long. the density of lead is 11.4 g/ml?
Ostrovityanka [3204]
1950 g This is the result of lead being spread out in kilograms
5 0
1 month ago
Read 2 more answers
So, why can a properly executed karate kick break a concrete block without fracturing bones [16]? first, bone is a very strong m
Yuliya22 [3333]
Contact me for the complete response, if it’s not too late.
3 0
1 month ago
A new moon is discovered orbiting Neptune with an orbital speed of 9.3 103 m/s. Neptune's mass is 1.0 1026 kg. What is the
Yuliya22 [3333]
The radius of the moon's orbit is calculated as R = 7.715 x 10⁷ m, and the moon's orbital period is T = 14.48 hr. The given orbital speed of the moon is v = 9.3 x 10³ m/s, with Neptune's mass being M = 1.0 x 10²⁶ Kg. The moon's orbital velocity can be expressed using the formula. Therefore, by squaring the equation and resolving for r + h, we calculate: R = GM / v². Upon substituting in, we find R to be 7.715 x 10⁷ m. The relation for the moon's orbital period yields T = 2π/ω and simplistically, T = 2πR/v, where ω = v/r. Following this, we compute T, leading to the conclusion: T = 14.48 hr.
3 0
1 month ago
A small sphere of radius R is arranged to pulsate so that its radius varies in simple harmonic motion between a minimum of R−x a
Softa [3030]
The sound wave intensity at the sphere's surface is described as follows: B = Bulk modulus. The oscillation amplitude of the sphere can be represented as: Substitute velocity and amplitude into Pmax. The intensity of the sound wave at a distance is determined by:
5 0
1 month ago
A spherically symmetric charge distribution has a charge density given by ρ = a/r , where a is constant. Find the electric field
Yuliya22 [3333]
The infinitesimal charge dQ on a layer with thickness dr is expressed as

dQ = (charge density) × (surface area) × dr

dQ = ρ(r)4πr²dr

∫ dQ = ∫ (a/r)4πr²dr

∫ dQ = 4πa ∫ rdr

Q(r) = 2πar² - 2πa0²

Q = 2πar² (= total charge confined within a spherical surface of radius r)

According to Gauss's Law:

(Flux through surface) = (charge enclosed by surface)/ε۪

(Surface area of sphere) × E = Q/ε۪

4πr²E = 2πar²/ε۪

<span>E = a/2ε۪


I trust my response has been helpful. Thank you for your question! We hope to assist with your future inquiries. Have a great day!

</span>
3 0
1 month ago
Read 2 more answers
