Solenoid 2 has twice the diameter, twice the length, and twice as many turns as solenoid 1. How does the field B2 at the center

of solenoid 2 compare to B1 at the center of solenoid 1?

1 answer:

Sav [3.1K]3 months ago

4 0

Complete Question

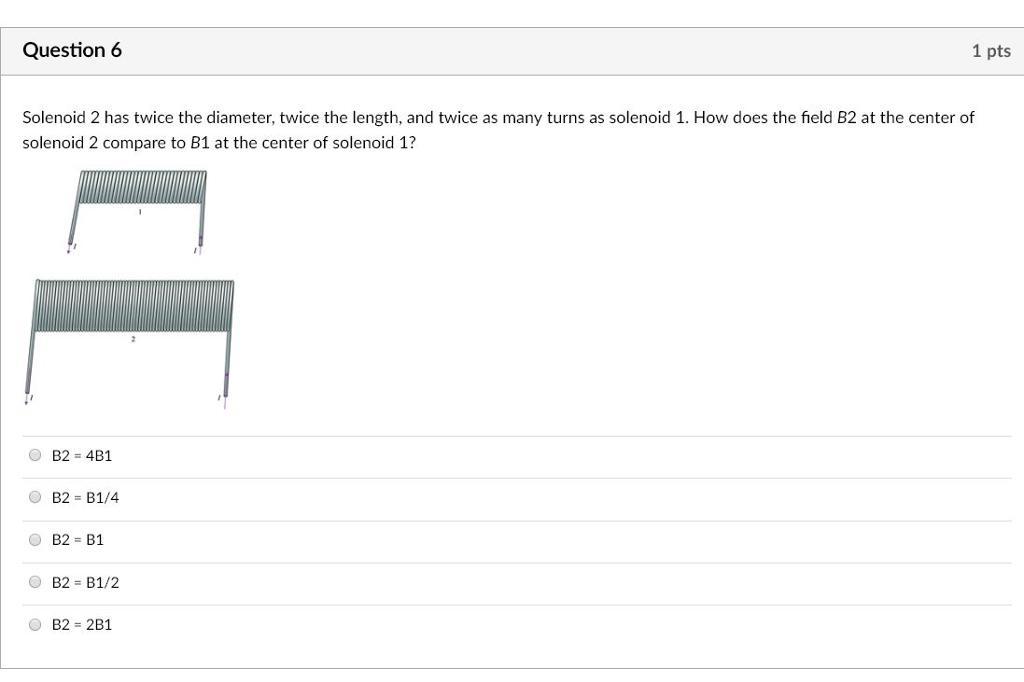

The entire question is displayed in the first uploaded image

Answer:

The right choice is option 3

Explanation:

The question informs us that

The diameter of solenoid 1 is $d_1$

The length of solenoid 1 is $L_1$

The number of turns of solenoid is $N_1$

The diameter of solenoid 2 is $d_2 = 2d_1$

The length of solenoid 2 is $L_2 = 2L_1$

The number of turns of solenoid 2 is $N_2 = 2 N_1$

Typically, the magnetic field in a solenoid can be expressed mathematically as

$B = \frac{\mu_o * N * I }{L}$

According to this formula we find that

$B \ \alpha \ \frac{N}{L}$

$B = C \frac{N}{L}$

Here C denotes constant

=> $C = \frac{B * \frac{L}{N}$

=> $\frac{B_1 * \frac{L_1}{N_1} = \frac{B_2 * \frac{L_2}{N_2}$

=> $\frac{B_1}{B_2 } = \frac{N_1 L _2}{ N_2L_1}$

=> $\frac{B_1}{B_2 } = \frac{N_1 * (2 L_1)}{ (2 N_2)L_1}$

=> $\frac{B_1}{B_2 } = 1$

=> $B_2 = B_1$
