cestrela7
1 month ago
5

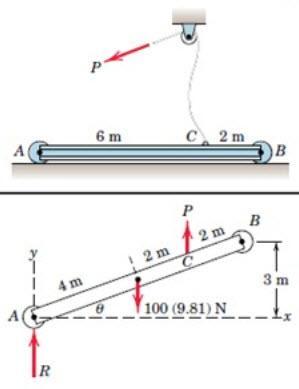

The uniform 100-kg I-beam is supported initially by its end rollers on the horizontal surface at A and B. by means of the cable

at C, it is desired to elevate end B to a position 3 m above end A. Determine the required tension P, the reaction at A, and the angle q made by the beam with the horizontal in the elevated position.

Physics
1 answer:
Sav [3.1K]1 month ago
8 0

I've included a free body diagram to clarify this issue.

We begin by summing the Moments at point A,

\sum M_A = 0

P(6cos\theta)-981(4cos\theta)=0

P=654N

Next, we perform the summation of Forces in the Y-direction,

\sum F_y = 0

654+R-981 = 0

R=327N

Finally, we determine the angle using the sine function.

sin\theta = \frac{3m}{4m+2m+2m} = \frac{3m}{8m}

\theta = 22.02\°
