Point m is located a distance 2d from the midpoint between the two wires. find the magnitude of the magnetic field b1m created a

Question

1 month ago

12

t point m by wire 1.

1 answer:

Sav [3.1K] · Answer 1 · 2026-03-29T07:52:07+03:00

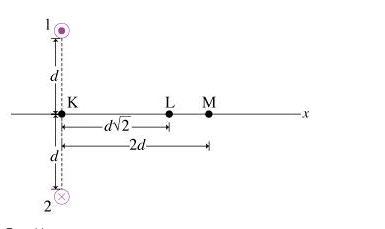

Reminder: The illustration mentioned in the inquiry is included here as a file.

Response:

The intensity of the magnetic field is $B = \frac{0.071 \mu I}{d}$

Clarification:

The magnetic field can be calculated using the following equation:

$B = \frac{\mu I}{2\pi R}$ ...............(1)

Where I refers to the current flowing through the wires

To find the distance R from point 1 to m, apply the Pythagorean theorem

$R = \sqrt{d^{2} + (2d)^{2} }$

$R = \sqrt{5d^{2} } \\R = d\sqrt{5}$

Inserting R into equation (1)

$B = \frac{\mu I}{2\pi d\sqrt{5} }$

$B = \frac{0.071 \mu I}{d}$
