swat32
1 month ago
14

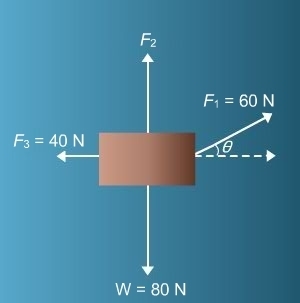

Use this free body diagram to help you find the magnitude of the force F2 needed to keep this block in static equilibrium. WILL

GIVE BRAINLIEST

Physics
1 answer:
Yuliya22 [3.3K]1 month ago
4 0
In static equilibrium, all forces balance out. Therefore, to simplify, start by breaking down F1 into its horizontal and vertical components. Since no other forces act horizontally, F1's horizontal component is known to be 40N. This information can be used to determine the vertical component using the Pythagorean theorem. Once the components are established, simply add the vertical components to calculate the difference between the upward and downward forces.
