Derive an equation for the acceleration of block 3 for any arbitrary values of m3 and m2. Express your answer in terms of m3, m2

The complete question is;

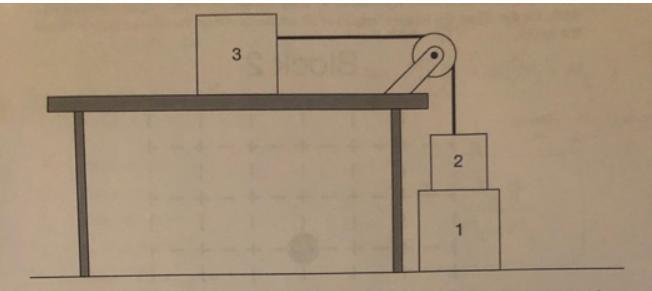

Block 1 sits on the floor with block 2 resting atop it. Block 3, which is stationary on a frictionless table, is attached to block 2 via a string that passes over a pulley depicted in the illustration below. Both the string and pulley have negligible mass.

Once block 1 is taken away without impacting block 2.

Derive an equation for the acceleration of block 3 considering arbitrary values for m3 and m2. Express your answer in terms of m3, m2, and relevant physical constants as needed.

Answer:

a = (m2)g/(m3 + m2)

Explanation:

Examining the attached illustration, by analyzing the free body diagram for block 3 and utilizing Newton's first law of motion, we reach the following formula;

T = (m3)a - - - (eq 1)

where;

T is the tension in the string

a is acceleration

m3 is the mass of block 3

Simultaneously, doing the same for Block 2, the free body diagram yields the equation; (m2)g - T = (m2)a

Rearranging for T results in;

T = (m2)g - (m2)a - - - (eq 2)

where;

g represents acceleration due to gravity

T is the tension in the string

a is acceleration

m2 is the mass of block 2

To deduce the acceleration, we will substitute (m3)a in place of T in eq 2.

Thus;

(m3)a = (m2)g - (m2)a

(m3)a + (m2)a = (m2)g

a(m3 + m2) = (m2)g

a = (m2)g/(m3 + m2)
