Cerrena
1 month ago
10

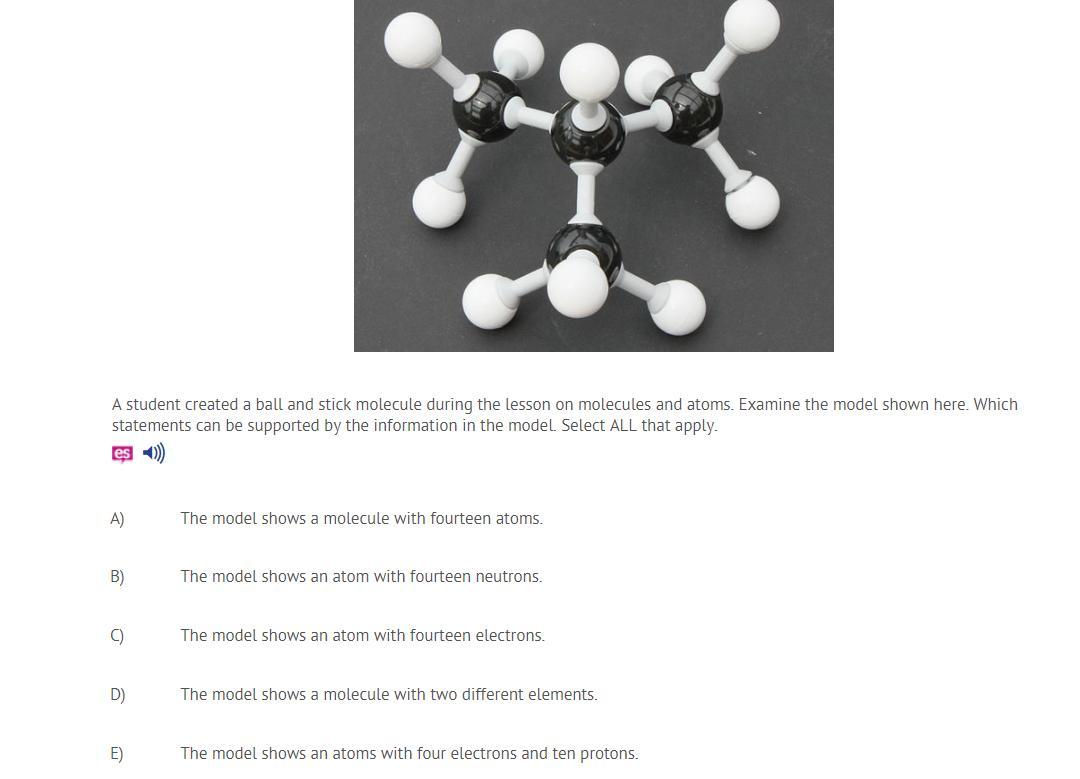

A student created a ball and stick molecule during the lesson on molecules and atoms. Examine the model shown here. Which statem

ents can be supported by the information in the model. Select All that apply.

Chemistry
1 answer:
VMariaS [2.9K]1 month ago
4 0

A molecular model is a three-dimensional depiction of a molecule. It illustrates all the atoms comprising the molecule.

The statements that can be substantiated by the model include

  • The model illustrates a molecule containing 14 atoms
  • The model features a molecule made up of two distinct elements

From the representation shown, we see white and black balls. Each ball represents an atom of an element.

With a total of 14 balls present, this indicates there are 14 atoms present. Each color of ball signifies an element. The presence of two distinct colors suggests that there are two different types of elements in the molecule.

For additional details:

You might be interested in
A 24.1-g mixture of nitrogen and carbon dioxide is found to occupy a volume of 15.1 L when measured at 870.2 mmHg and 31.2oC. Wh
eduard [2782]

Answer:

The mole fraction of nitrogen is   0.52

Explanation:

Provided information:

Temperature =  31.2 °C

Pressure = 870.2 mmHg

Volume = 15.1 L

Mass of the mixture = 24.1 g

Mole fraction of nitrogen =?

Process:

Converting pressure:

870.2 / 760 = 1.12 atm

Converting temperature:

31.2 + 273 = 304.2 K

Total moles calculation:

PV = nRT

n = PV/RT

n =  1.12 atm × 15.1 L / 0.0821 L.atm. mol⁻¹.K⁻¹ × 304.2 K

n = 16.9 L.atm.  / 25 L.atm. mol⁻¹

n = 0.676 mol

Let x be the number of moles of nitrogen.

Thus, the moles of CO₂ = 0.676 - x

The mass of nitrogen = x mol × 28 g/mol, and for CO₂ the mass = 44 g/mol (0.676 - x)

We have 24.1  = 28x + (29.7 - 44x)

Rearranging gives: 24.1 - 29.7  =  28x  - 44x

-5.6 = -16 x

Therefore, x = 0.35

Mole fraction of nitrogen:

Mole fraction of nitrogen = moles of nitrogen / total moles

Mole fraction of nitrogen =   0.35  mol / 0.676 mol

Mole fraction of nitrogen =   0.52

3 0
2 months ago
When a heavy football player and a light one run into each other, which player hits the other with
Anarel [2989]

A heavier player collides with a lighter player using greater force.

The lighter player sustains more injuries following the impact.

Explanation:

A heavier player impacts a lighter player with greater intensity, resulting in more pronounced injuries to the lighter player post-collision.

Force is defined as mass multiplied by the acceleration of an object;

    Force = mass x acceleration

We observe that as mass and acceleration increase, the force exerted rises accordingly.

Clearly, the heavier player's mass surpasses that of the lighter player, leading to a greater force exerted upon collision.

Moreover, the lighter player is likely to be injured more severely after the clash. The momentum generated by the heavier player during the impact is considerably significant. Once they collide, the lighter player will certainly alter their speed and trajectory.

Learn more:

Momentum

5 0
2 months ago
A piece of iron (C=0.449 J/g°C) and a piece of gold (C=0.128 J/g°C) have identical masses. If the iron has an initial temperatur
lorasvet [2795]
The true statement is B. With identical masses for both metals, the final temperature of the two will be more aligned with 498 K rather than 298 K, as iron's specific heat capacity is significantly greater than that of gold's.
4 0
2 months ago
If angle ABE = 2n + 7 and angle EBF=4n-13,<br>find angle ABE.​
VMariaS [2998]

Answer:

Angle ABE measures 27°.

Explanation:

Refer to the attached diagram related to this question.

The given values are ∠ABE=2n+7 and ∠EBF=4n-13.

Clearly seen in the diagram, ∠ABE and ∠EBF are equal in measure.

m\angle ABE=m\angle EBF

2n+7=4n-13

Move variable components to one side of the equation.

7+13=4n-2n

20=2n

Split both sides by 2.

10=n

The solution for n arrives at 10.

The next step is to calculate ∠ABE.

\angle ABE=2(10)+7=20+7=27

Consequently, the measurement of angle ABE is 27°.

4 0
2 months ago
The standard cell potential (E°cell) for the reaction below is +0.63 V. The cell potential for this reaction is ________ V when
castortr0y [3046]

Answer: The cell potential for the given reaction stands at 0.50 V

Explanation:

The provided cell reaction is:

Pb^{2+}(aq)+Zn(s)\rightarrow Zn^{2+}(aq)+Pb(s)

The half-reactions are:

Anode oxidation half reaction:  Zn\rightarrow Zn^{2+}+2e^-

Cathode reduction half reaction:  Pb^{2+}+2e^-\rightarrow Pb

Initially, we need to find the cell potential for this reaction.

Utilizing the Nernst equation:

E_{cell}=E^o_{cell}-\frac{2.303RT}{nF}\log \frac{[Zn^{2+}]}{[Pb^{2+}]}

where,

F = Faraday's constant = 96500 C

R = gas constant = 8.314 J/mol·K

T = room temperature = 25^oC=273+25=298K

n = electrons exchanged in oxidation-reduction = 2

E^o_{cell} = standard electrode potential for the cell = +0.63 V

E_{cell} = cell potential for the reaction =?

[Zn^{2+}] = concentration of Zn²⁺ = 3.5 M

[Pb^{2+}] = 2.0\times 10^{-4}M

Now substituting all known values into the equation, we arrive at:

E_{cell}=(+0.63)-\frac{2.303\times (8.314)\times (298)}{2\times 96500}\log \frac{3.5}{2.0\times 10^{-4}}

E_{cell}=0.50V

So, the resulting cell potential for this reaction is 0.50 V

5 0
1 month ago
