A delivery man starts at the post office, drives 40 km north, then 20 km west, then 60 km northeast, and finally 50 km north to
stop for lunch. use a graphical method to find his net displacement vector.
1 answer:
assuming north-south is along the Y-axis and east-west along the X-axis
X = total X-displacement

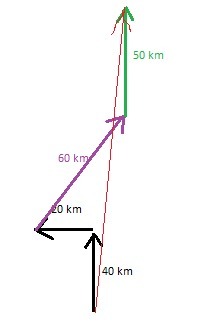

from the graph, total displacement in the X-direction is computed as
X = 0 - 20 + 60 Cos45 + 0
X = 42.42 - 20
X = 22.42 m
Y = total Y-displacement
from the graph, total displacement in the Y-direction is computed as
Y = 40 + 0 + 60 Sin45 + 50
Y = 90 + 42.42
Y = 132.42 m
To calculate the magnitude of the net displacement vector, we apply the Pythagorean theorem, yielding
magnitude: Sqrt(X² + Y²) = Sqrt(22.42² + 132.42²) = 134.31 m
Direction: tan⁻¹(Y/X) = tan⁻¹(132.42/22.42) = 80.4 deg north of east
