olga nikolaevna
2 months ago
8

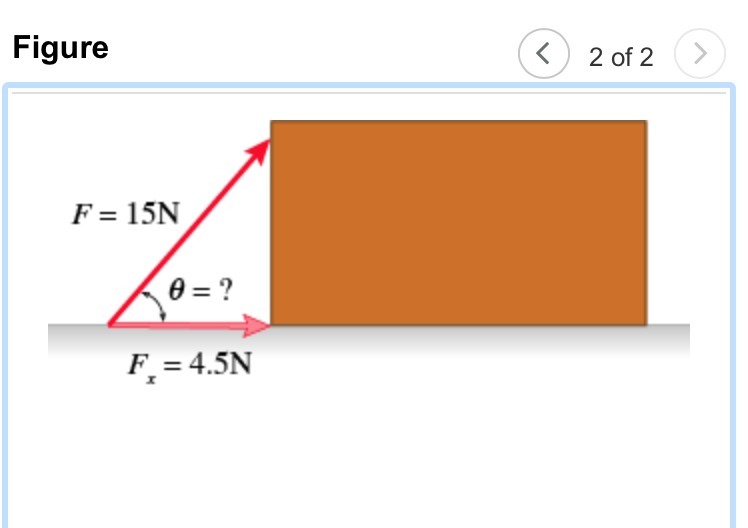

A force is applied to a block sliding along a surface (Figure 2). The magnitude of the force is 15 N, and the horizontal compone

nt of the force is 4.5 N. At what angle (in degrees) above the horizontal is the force directed?

Physics
2 answers:
Softa [3K]2 months ago
4 0

If my calculations are accurate, the angle is 67.5 degrees.

Yuliya22 [3.3K]2 months ago
3 0

Explanation:

Given:

The applied force magnitude is F = 15 N.

The horizontal force component is F_x=4.5\ N.

The angle above the horizontal can be found using the relationship:

F_x=F\ cos\theta

4.5=15\ cos\theta

\theta=cos^{-1}(\dfrac{4.5}{15})

\theta=72.54^{\circ}

Thus, the angle between the force direction and the surface is 72.54 degrees, representing the required answer.

You might be interested in
If you wished to warm 100 kg of water by 15 degrees celsius for your bath, how much heat would be required? (give your answer in
kicyunya [3294]
To respond to the previous question:
<span>Q = heat quantity (kJ) </span>
<span>cp = specific heat (kJ/kg.K) = 4.187 kJ/kgK </span>
<span>m = weight (kg) </span>
<span>dT = temperature change between hot and cold water (K). Note: dt in °C is identical to dt in Kelvin </span>

<span>Q = 100kg * (4.187 kJ/kgK) * 15 K </span>
<span>Q = 6,280.5 KJ = 6,280,500 J = 1,501,075.5 cal</span>
6 0
9 days ago
A solid metal sphere of diameter D is spinning in a gravity-free region of space with an angular velocity of ωi. The sphere is s
ValentinkaMS [3465]

Answer:

0.6

Explanation:

The formula for the volume of a sphere is \frac{4}{3} \pi (\frac{D}{2})^3

Thus \pi * r^2 * (\frac{D}{2} ) = \frac{4}{3} \pi (\frac{D}{2})^3

The radius of the disk is 1.15(\frac{ D}{2} )

Applying angular momentum conservation;

The M_i of the sphere = \frac{2}{5} m \frac{D}{2}^2

M_i of the disk = m*\frac{ \frac{1.15*D}{2}^2 }{2}

\frac{wd}{ws} = \frac{\frac{2}{5}m * \frac{D}{2}^2}{ m * \frac{(\frac{`.`5*D}{2})^2 }{2} }

= 0.6

5 0
1 month ago
Four wires are made of the same highly resistive material, cut to the same length, and connected in series. Wire 1 has resistanc
ValentinkaMS [3465]

Answer:

V_2 = \frac{R_2 V_0}{R_1+R_2+R_3+R_4}

Explanation:

The four wires are arranged in series: this setup indicates that the same current passes through them, while the total voltage from the battery, V0, equals the combined voltages across each resistor:

V_0=V_1+V_2+V_3+V_4

Additionally, the total resistance for this series configuration is

R_{eq}=R_1+R_2+R_3+R_4

Using Ohm's law, we can determine the voltage V2 across wire 2:

V_2 = R_2 I (1)

Here, I represents the entire current flowing through the circuit, which is calculated as:

I=\frac{V_0}{R_{eq}}=\frac{V_0}{R_1+R_2+R_3+R_4}

By substituting into equation (1), we derive V2:

V_2 = \frac{R_2 V_0}{R_1+R_2+R_3+R_4}

8 0
13 days ago
Which statements about inertia and centripetal force are correct? Check all that apply. Inertia is always present. Inertia cause
kicyunya [3294]
Inertia is universally present. It's important to note that inertia doesn't serve as the force keeping objects in circular paths; that role belongs to centripetal force, which is not always present. Centripetal force actively pulls objects towards the center of a circle. Both inertia and centripetal force contribute to the phenomenon of circular motion. Thank you, and enjoy your day;)
6 0
1 month ago
Read 2 more answers
A block of mass m, initially held at rest on a frictionless ramp a vertical distance H above the floor, slides down the ramp and
kicyunya [3294]

Answer:

\displaystyle W=-m.g.H

Explanation:

Transformation of Energy

Also known as energy conversion, this refers to the process in which energy shifts from one type to another. In this context, three energy forms are involved. When the object is stationary at the ramp's peak, it possesses gravitational potential energy, calculated as

U=m.g.H

As the object descends the frictionless ramp, it converts all its potential energy into kinetic energy, represented as

\displaystyle K=\frac{m.v^2}{2}

Thus,

K=m.g.H

Ultimately, when the object encounters a rough surface, all energy converts to thermal energy. The work performed by the friction force corresponds to the alteration in kinetic energy, as all velocity is lost in this process:

\displaystyle W=\Delta E=K_f-K=0-K=-\frac{m.v^2}{2}

Given the kinetic energy equals the initial potential energy:

\boxed{\displaystyle W=-m.g.H}

The negative sign indicates that the work acted against the direction of movement, meaning the force and displacement are 180° apart.

This outcome is independent of the distance D needed to halt the block or the kinetic friction coefficient.

7 0
1 month ago
