1200 N-m of torque is used to drive a gear (A) of diameter 25 cm, which in turn drives another gear (B) of diameter 52 cm. What

torque is transmitted by gear B to its shaft? Give your answer in kN-m.

Physics
2 answers:
Ostrovityanka [2.2K]11 days ago
8 0

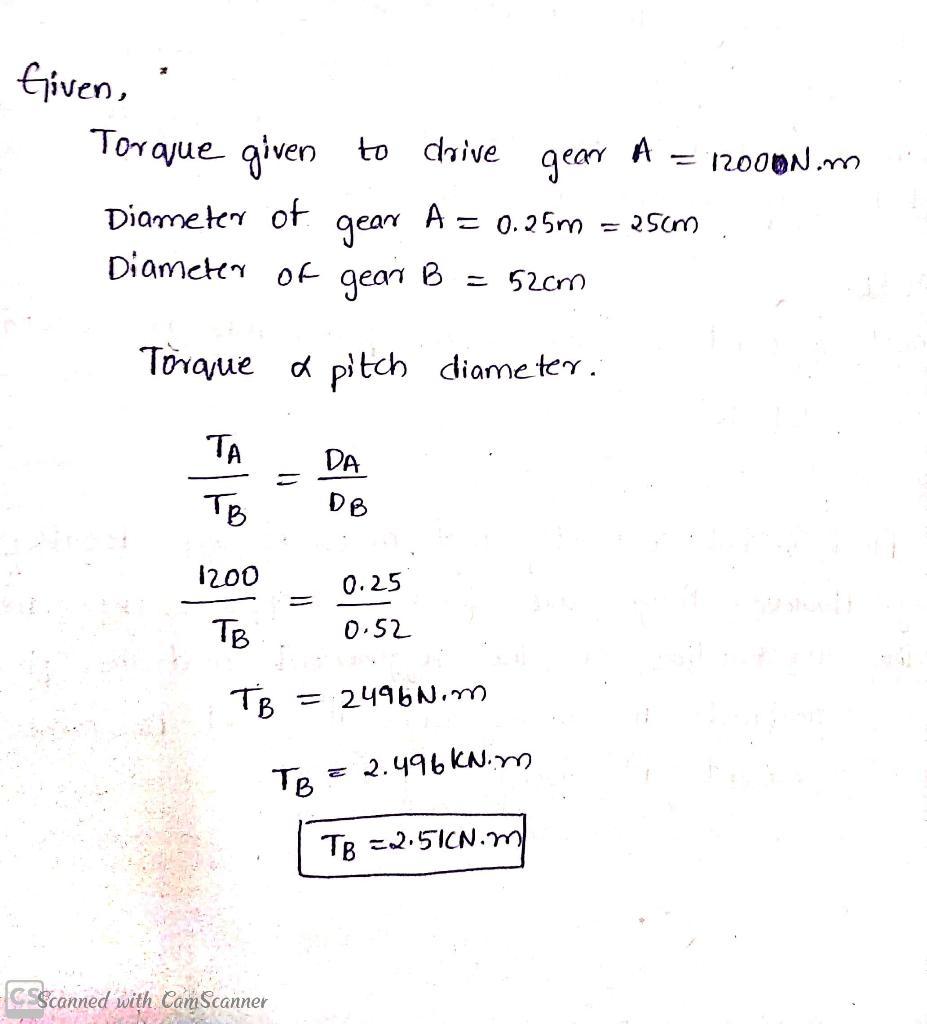

Response:

2.5kN.m

Details:

Torque relates directly to the pitch diameter

= Ta/Tb= Da/Db

For 120/Tb= 0.25/0.5

This gives Tb= 2.469kN.m, roughly 2.5kN.m


ValentinkaMS [2.4K]11 days ago
4 0

Response:

Details: The explanation follows below



You might be interested in
A bowling pin is thrown vertically upward such that it rotates as it moves through the air, as shown in the figure. Initially, t
Ostrovityanka [2208]

Answer:

Explanation:

The equation used to determine the maximum height of the bowling pin during its trajectory is given by;

H = u²/2g

where u, the initial speed/velocity, equals 10m/s

g stands for gravitational acceleration = 9.81m/s²

Substituting in the values gives us

H = 10²/2(9.81)

H = 100/19.62

Consequently, the highest point of the bowling pin's center of mass is approximately 5.0m.

3 0
1 month ago
The equation for the change in the position of a train (measured in units of length) is given by the following expression: x = ½
Keith_Richards [2263]
(B) (length)/(time³) Explanation: The term x = ½ at² + bt³ should meet dimensional consistency. This means that both bt³ and ½ at² must share the same units, which are length. To find the dimension of b, we rearrange the equation: [x] = [b]*[t]³ leads to length = [b]*time³, hence [b] = length/time³.
6 0
10 days ago
Read 2 more answers
A standard baseball has a circumference of approximately 23 cm . if a baseball had the same mass per unit volume as a neutron or
Softa [2035]

Answer:

 Baseball mass:  m_b=3.992*10^{14}kg

Explanation:

 Circumference of a baseball is calculated using 2πr = 23 cm

 Thus, the radius comes out to be 3.66 cm, which equals 3.66*10^{-2} m

 The mass density of the baseball matches that of a neutron or proton.

 Proton mass = 10^{-27} kg

 Proton diameter = 10^{-15} m

 Proton radius =  5*10^{-16} m

 Volume of the baseball is \frac{4}{3} \pi r^3

 Now by substituting all values into the mass per unit volume equation for the baseball, we get:

         \frac{m_b}{\frac{4}{3}\pi *(3.66*10^{-2})^3} =\frac{10^{-27}}{\frac{4}{3}\pi *(5*10^{-16})^3}

         \frac{m_b}{(3.66*10^{-2})^3} =\frac{10^{-27}}{(5*10^{-16})^3}

         m_b=3.992*10^{14}kg

       Therefore, the baseball mass amounts to m_b=3.992*10^{14}kg

5 0
16 days ago
Read 2 more answers
Give the symbols for 4 species that are isoelectronic with the telluride ion, te2-.
Keith_Richards [2263]
<span>Response: Chlorine has 17 electrons, thus, for 1+ and 2+ ions, we require elements with 18 and 19 electrons, which are argon and potassium: Ar+ and K 2+. For 1- and 2- ions, we need elements with 16 and 15 electrons, namely sulfur and phosphorus, represented as S- and P 2-. It’s important to note that + ions indicate electron loss, while - ions reflect electron gain.</span>
3 0
9 days ago
Lien is pushing a box across a table. She used a force of 100 N to get the box moving. Which force did she overcome to get the b
Yuliya22 [2438]
I will analyze each option. My assumption is that the answer is C.

Option A states that gravity acts downward on the box but does not affect its horizontal acceleration, provided there is no friction.

Option B indicates that the normal force goes upward on the box, which also does not influence horizontal acceleration.

In option C, the reaction force discussed relates to Newton’s 3rd law. This reaction force acts on Lien rather than the box itself, meaning she must overcome this force to set the box in motion. I believe this is the correct choice.

Option D refers to the push force applied by her; she wouldn’t have to counteract her own force regarding the box, but must address the reaction force as I mentioned in option C.
4 0
15 days ago
